Main Contactor X1 (HP6)
Main Contactor X1 (HP6)
Component Connector End Views

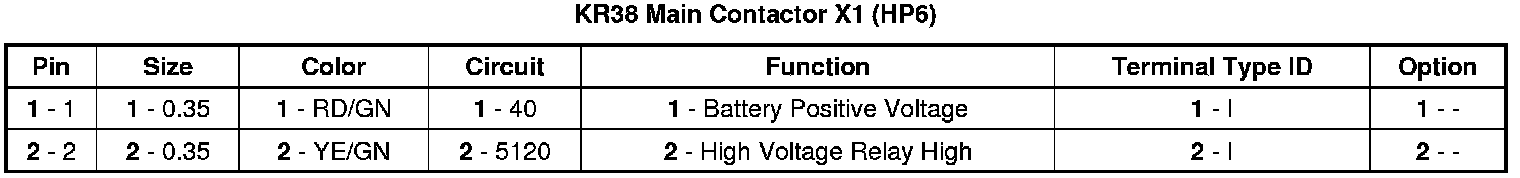

KR38 Main Contactor X1 (HP6)
