Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Buick
>>
2013
>>
Regal L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Instrument Panel Compartment Lamp
Instrument Panel Compartment Lamp
Component Connector End Views

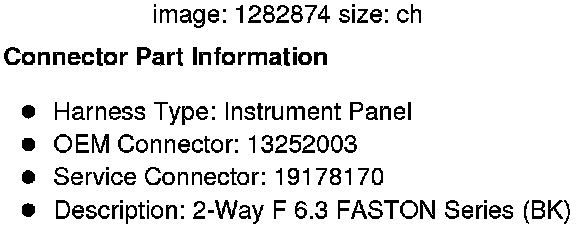

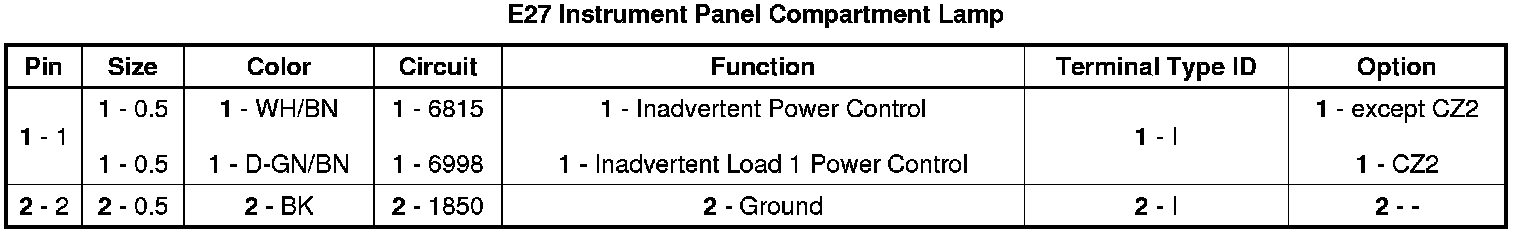

E27 Instrument Panel Compartment Lamp
