Backup Lamp
>>
Backup Lamp Switch
Backup Lamp Switch

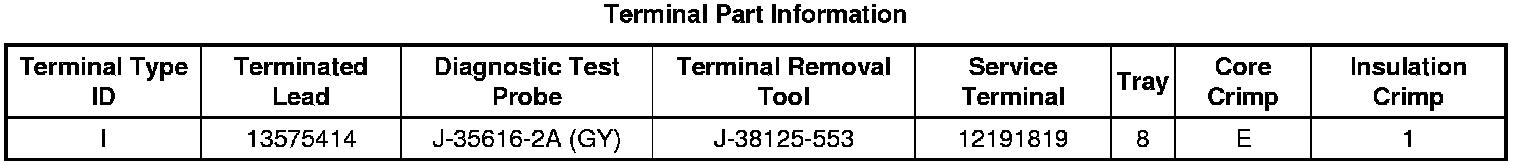

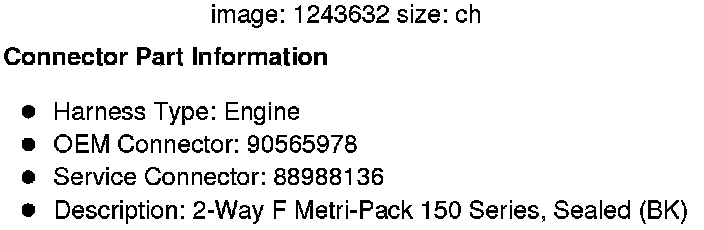

Component Connector End Views

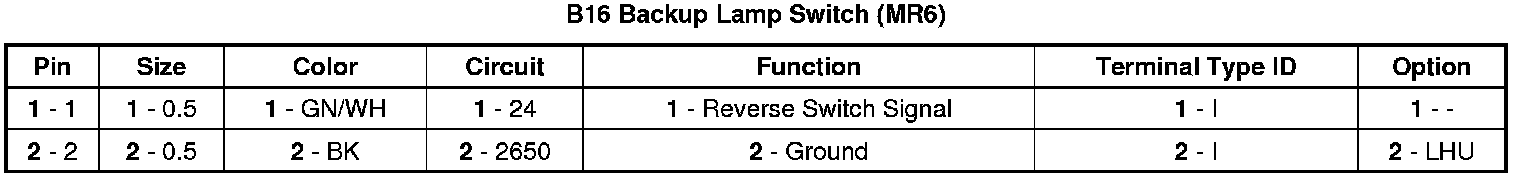

B16
Backup Lamp Switch
(MR6)
