Connector Views
>>
Ambient Light Sensor
Ambient Light Sensor
Component Connector End Views

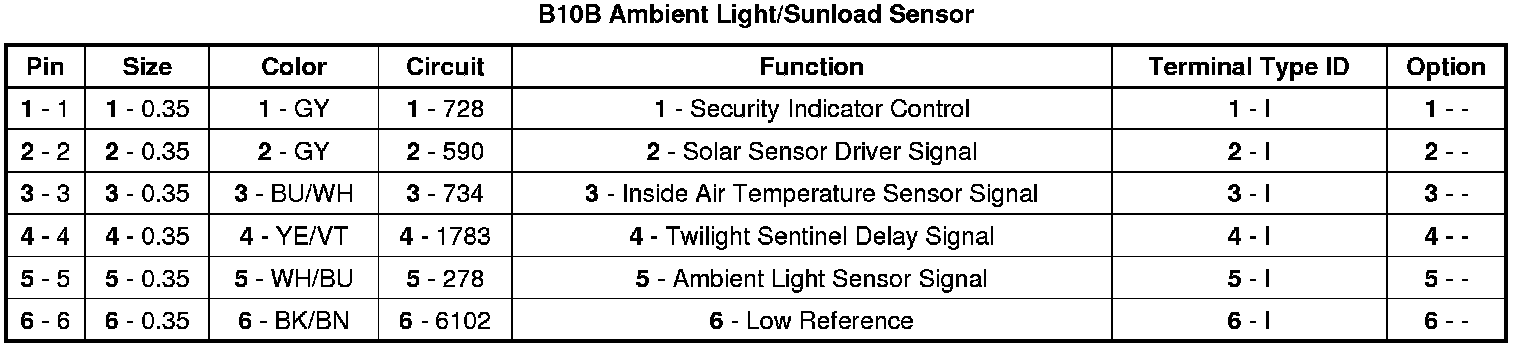

B10B Ambient Light/Sunload Sensor
