Ignition Switch
>>
Ignition Mode Switch (BTM)
Ignition Mode Switch (BTM)

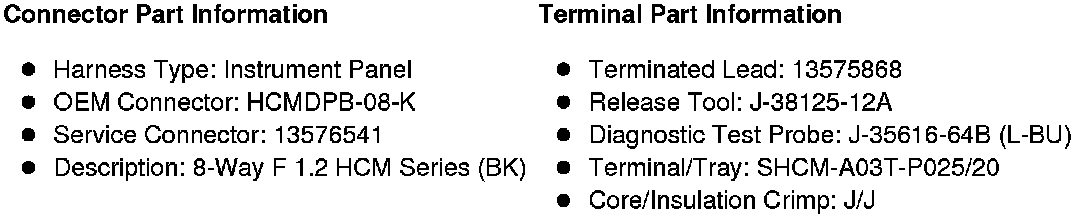

Component Connector End Views

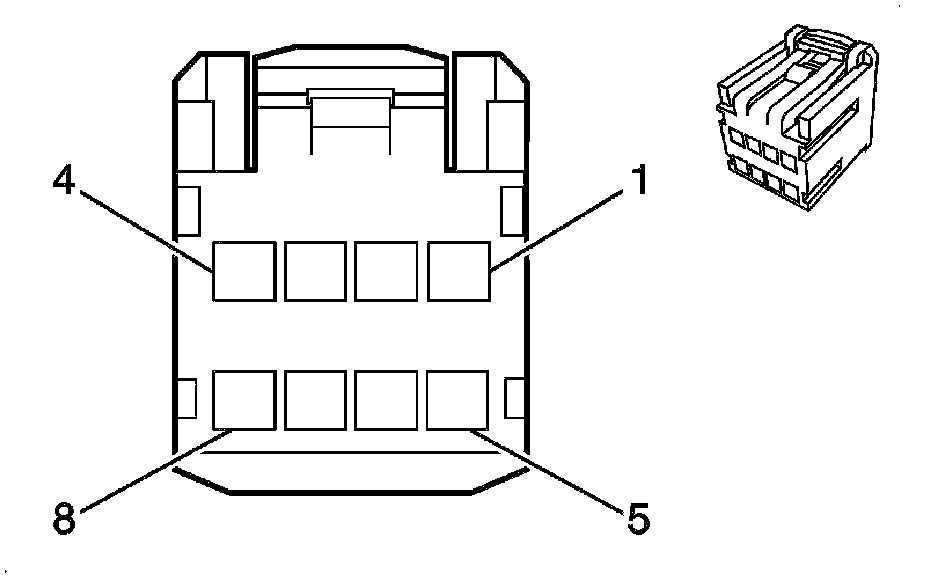

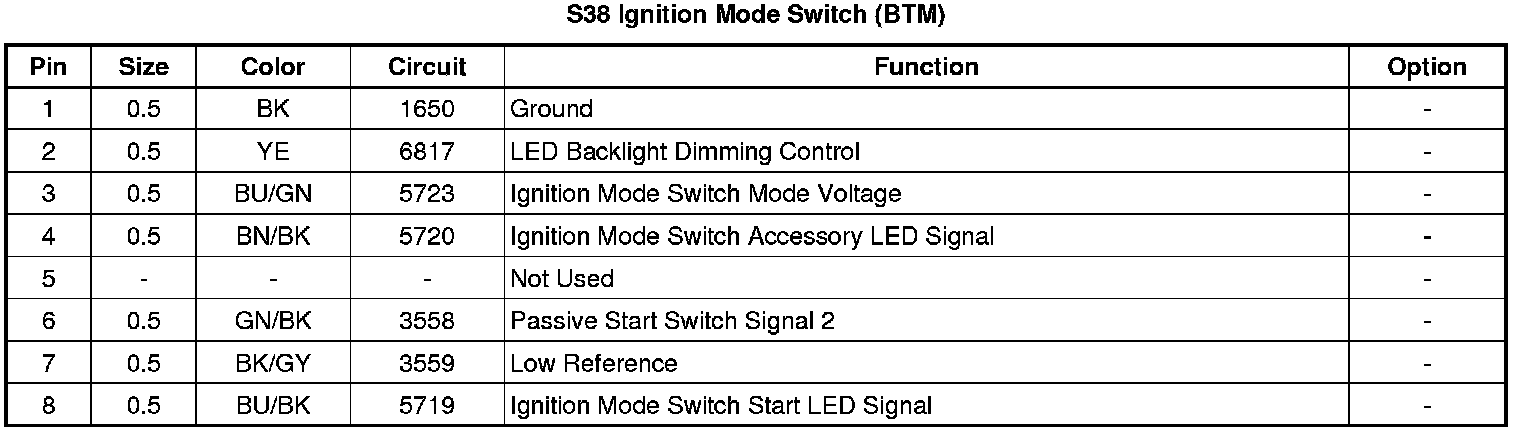

S38 Ignition Mode Switch (BTM)
