Buick
>>
2012
>>
Regal L4-2.4L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution Schematics
>>
G121
G121

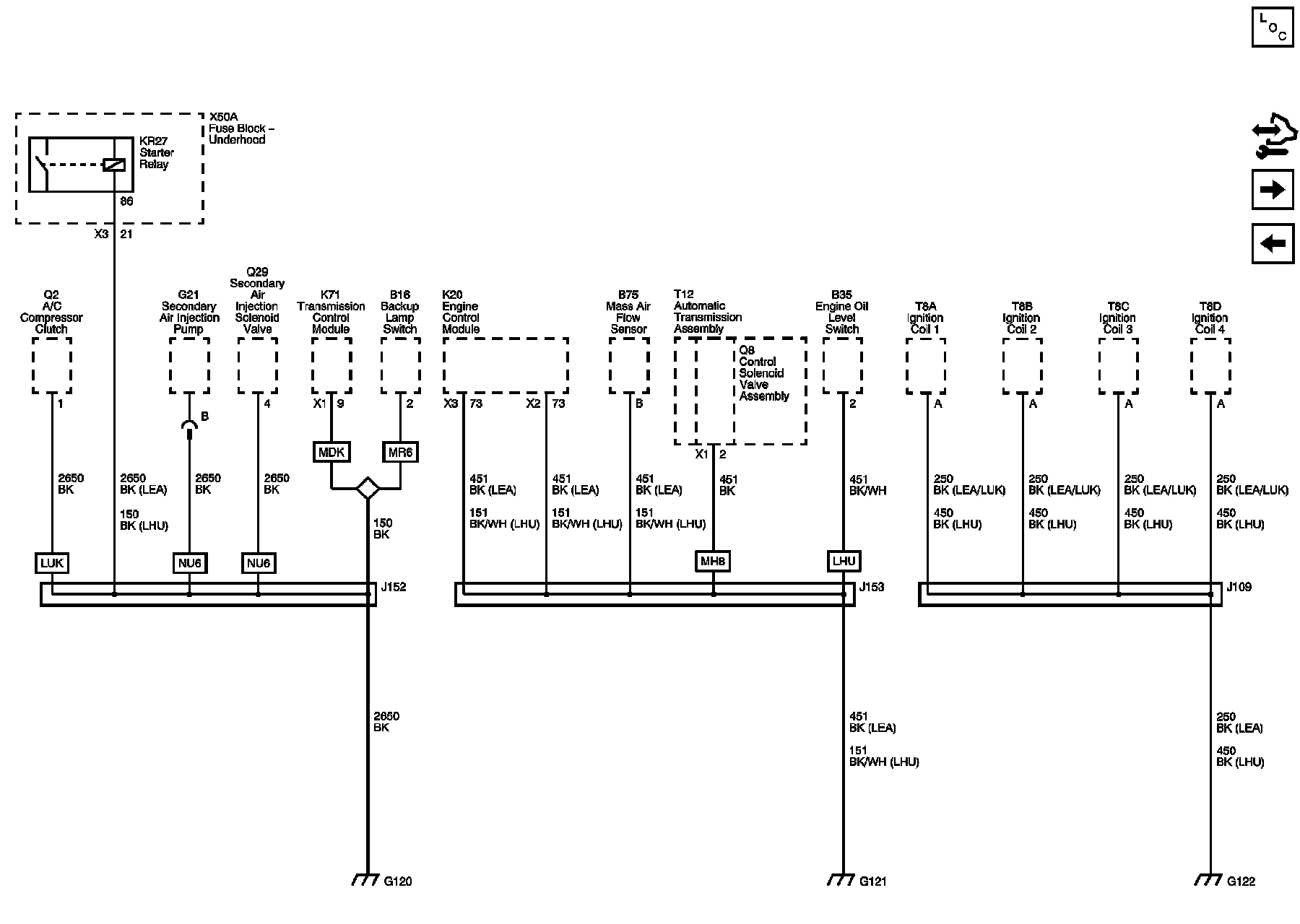

Ground Distribution Schematics
G120, G121, and G122
