Flexible Fuel Sensor
Flexible Fuel Sensor

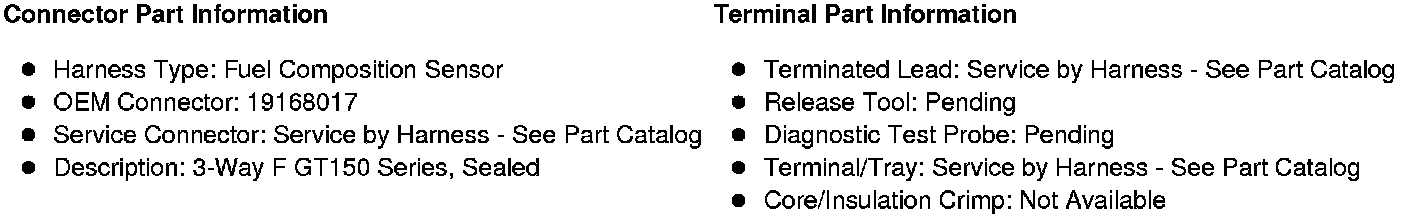

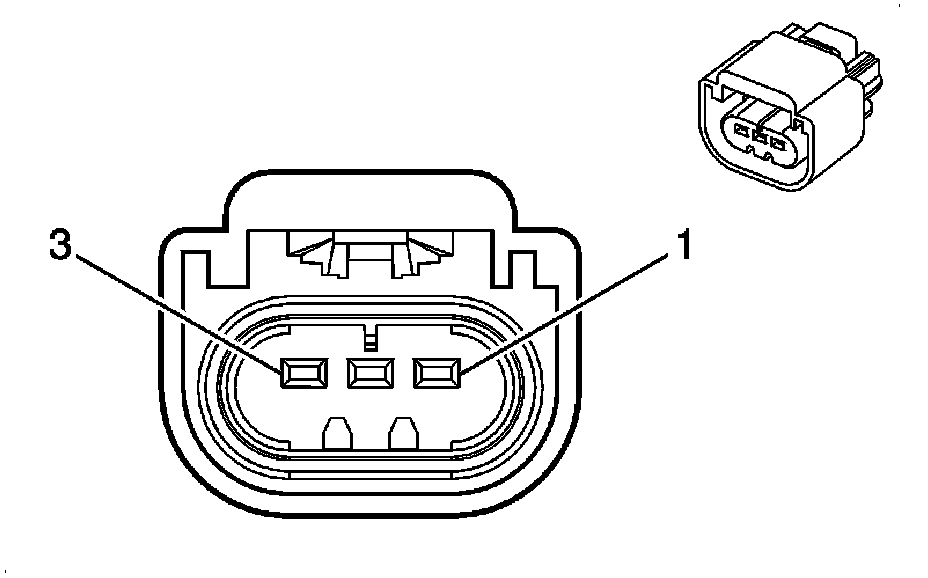

Component Connector End Views

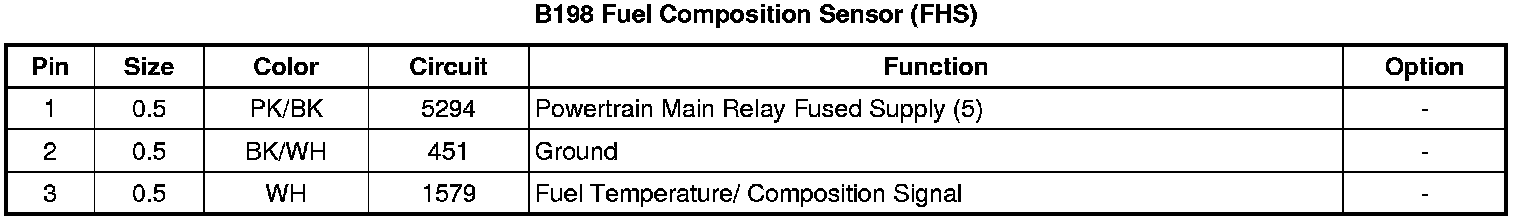

B198 Fuel Composition Sensor (pHs)
