Variable Boost Control Solenoid, Turbocharger
Variable Boost Control Solenoid, Turbocharger

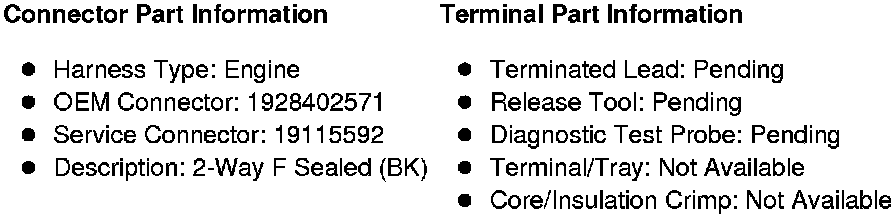

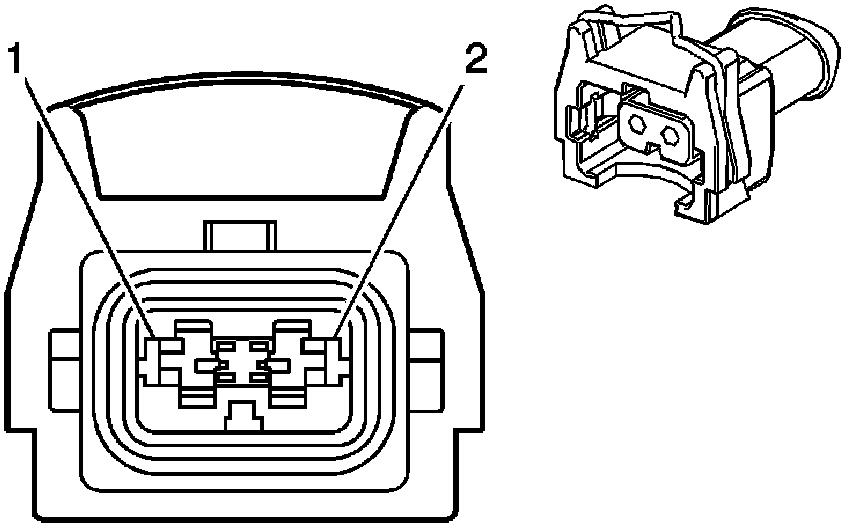

Component Connector End Views

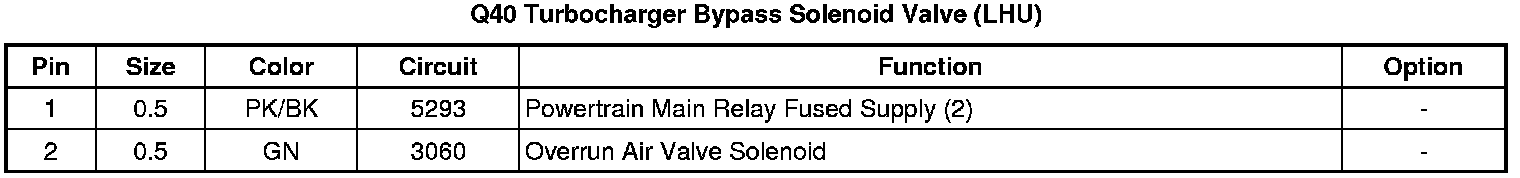

Q40
Turbocharger
Bypass Solenoid Valve (LHU)
