Buick
>>
2012
>>
LaCrosse FWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Charging System Control Module
>>
Starter/Generator X1 (HP6)
Starter/Generator X1 (HP6)

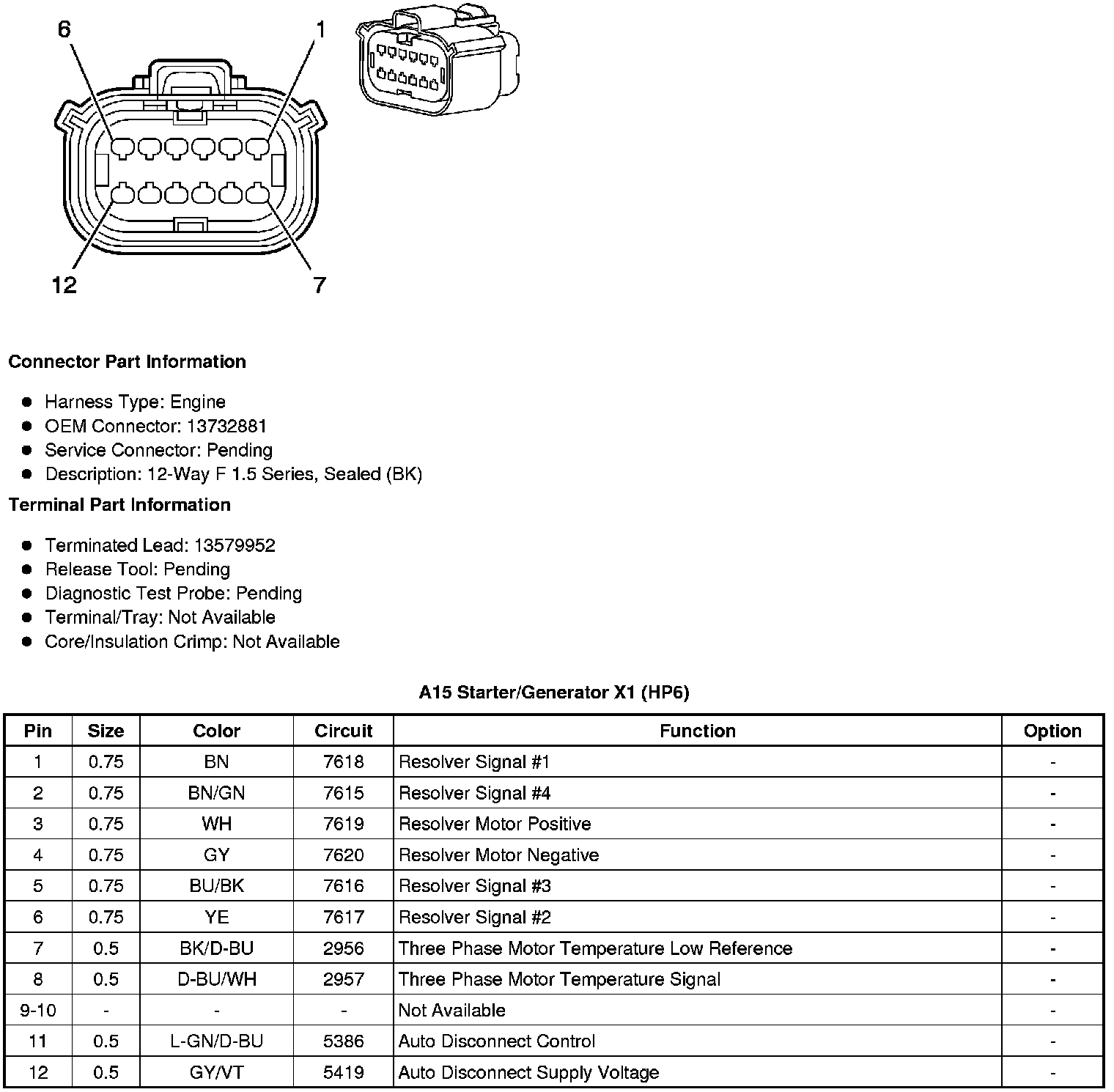

Component Connector End Views
A15 Starter/Generator X1 (HP6)
