Buick
>>
2011
>>
Regal L4-2.4L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Oxygen Sensor
>>
Diagrams
>>

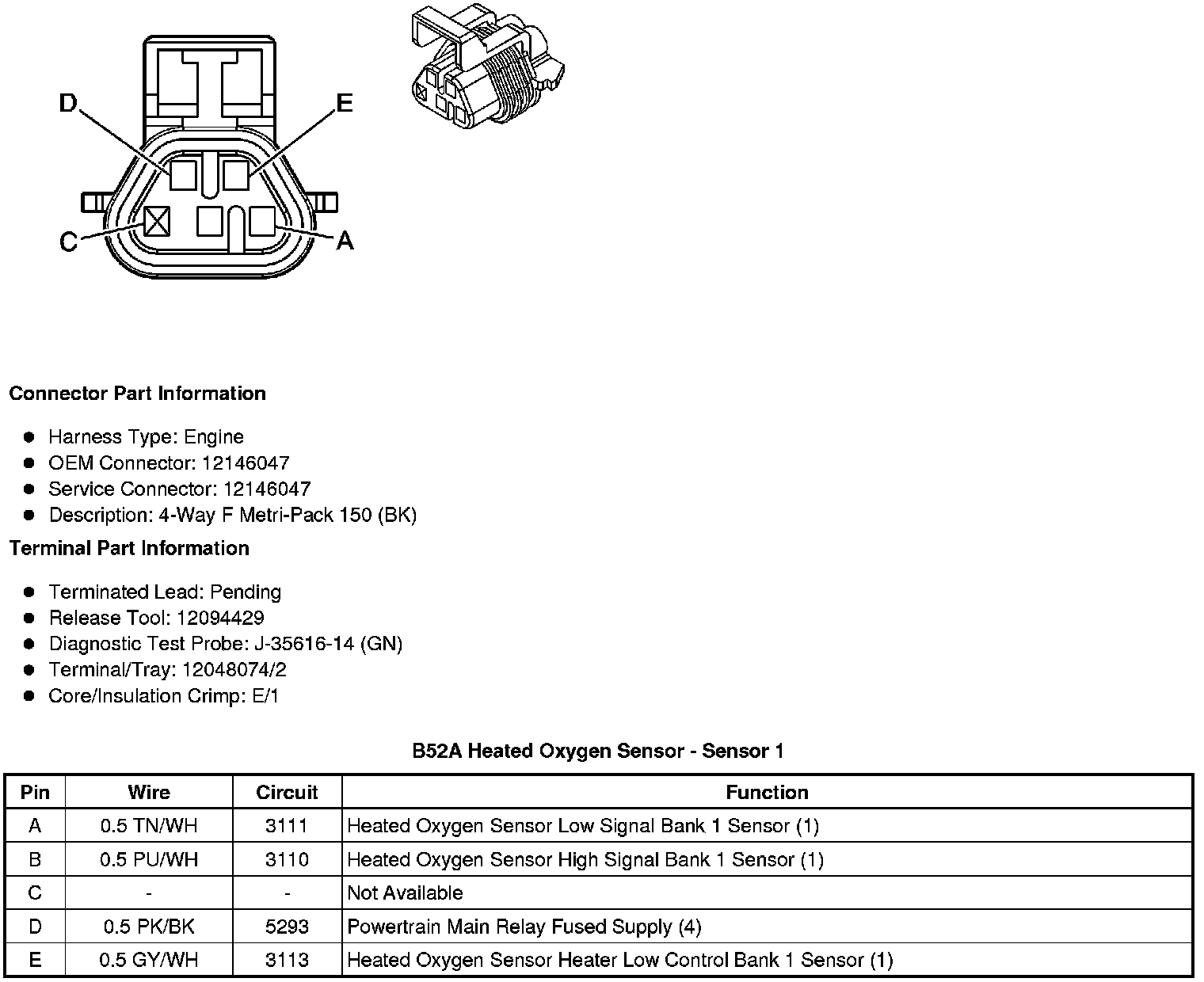

B52A Heated Oxygen Sensor - Sensor 1
B52A Heated Oxygen Sensor - Sensor 1
Component Connector End Views
B52A Heated Oxygen Sensor - Sensor 1
