Cabin Temperature Sensor / Switch
>>
B7D Air Temperature Sensor - Duct Lower Left
B7D Air Temperature Sensor - Duct Lower Left

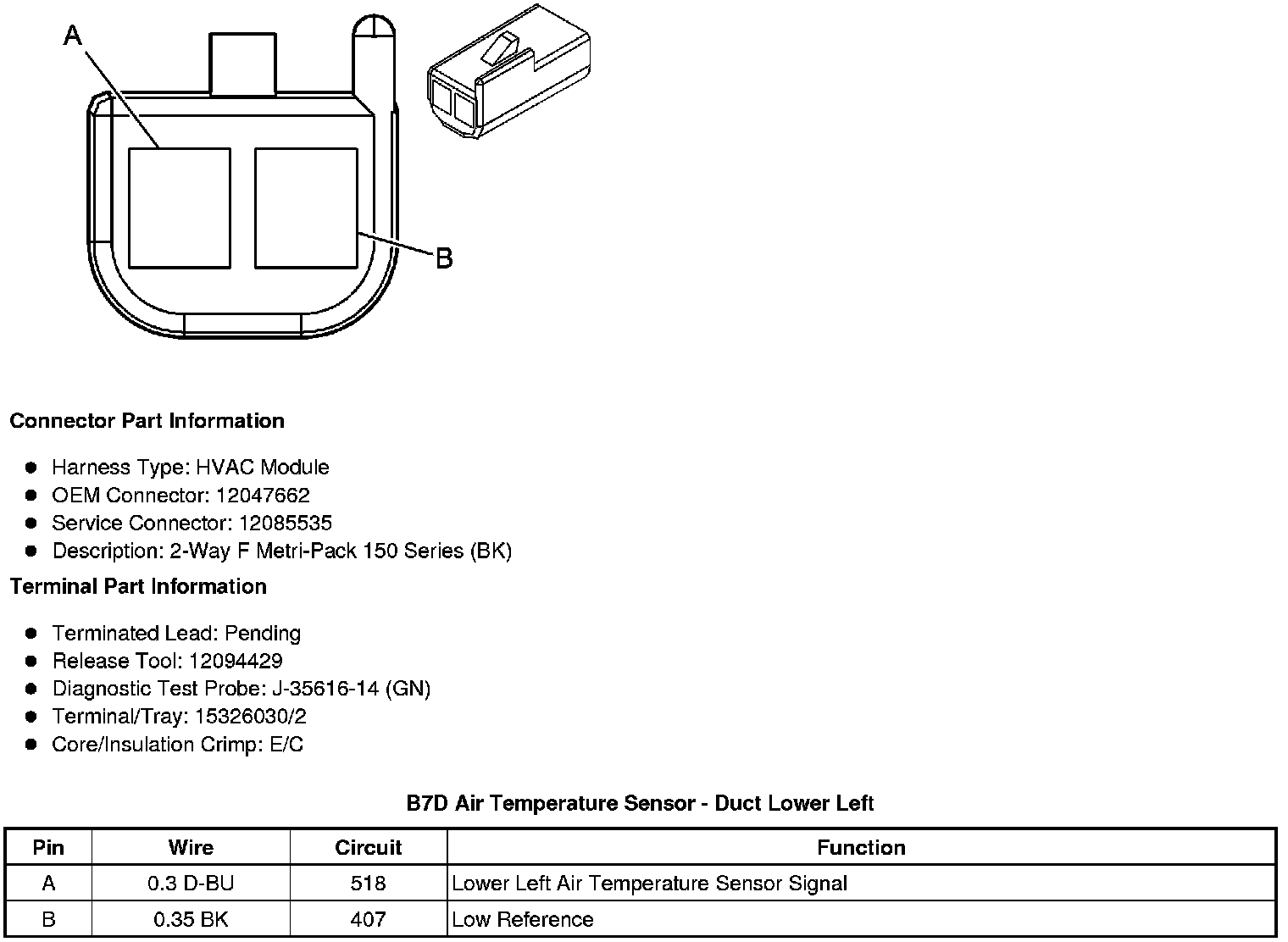

Component Connector End Views
B7D Air Temperature Sensor - Duct Lower Left
