Cabin Temperature Sensor / Switch
>>
B65 Intake Manifold Pressure and Air Temperature Sensor
B65 Intake Manifold Pressure and Air Temperature Sensor
Component Connector End Views

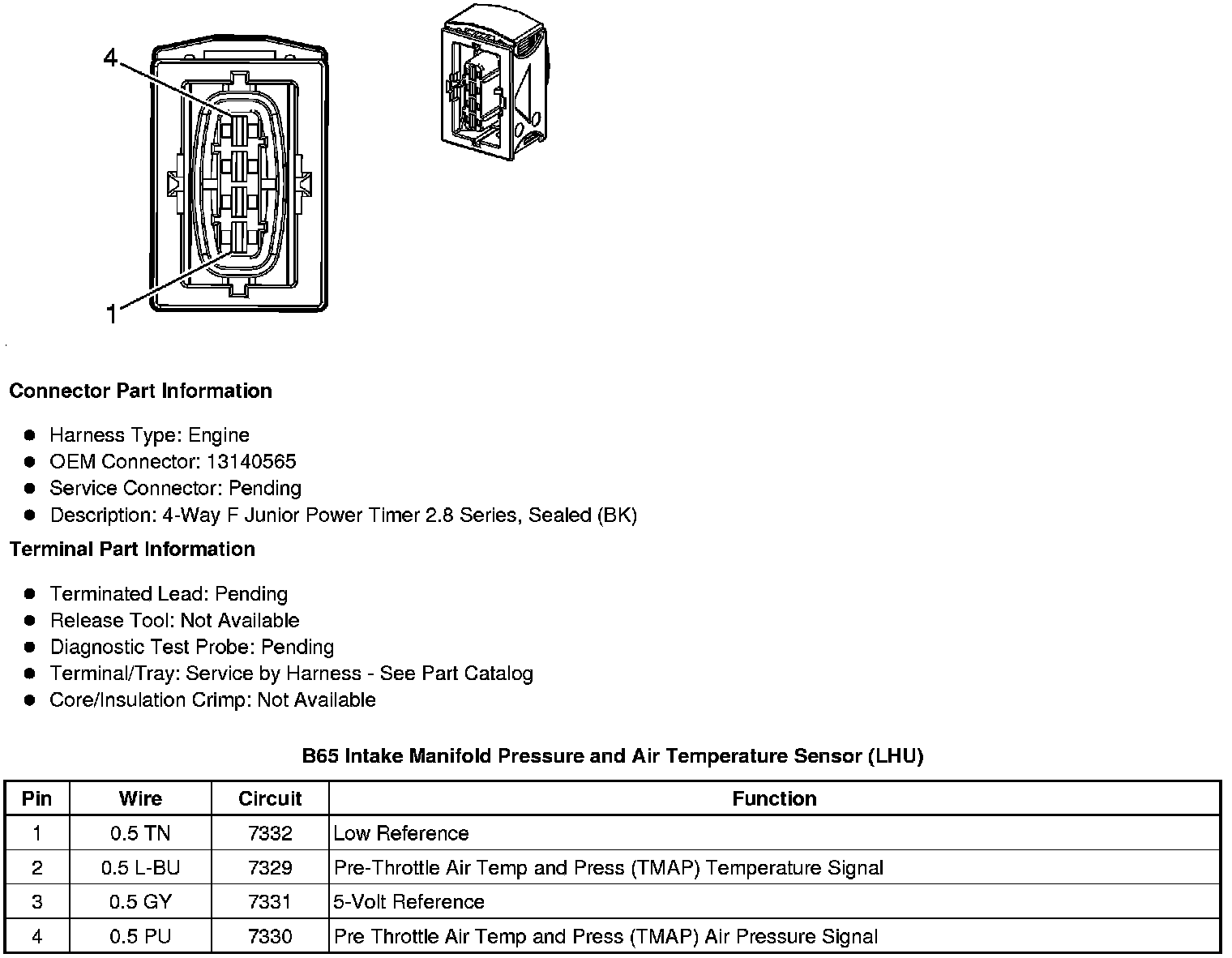

B65 Intake Manifold Pressure and Air Temperature Sensor (LHU)
