Shift Interlock, A/T
Shift Interlock, A/T

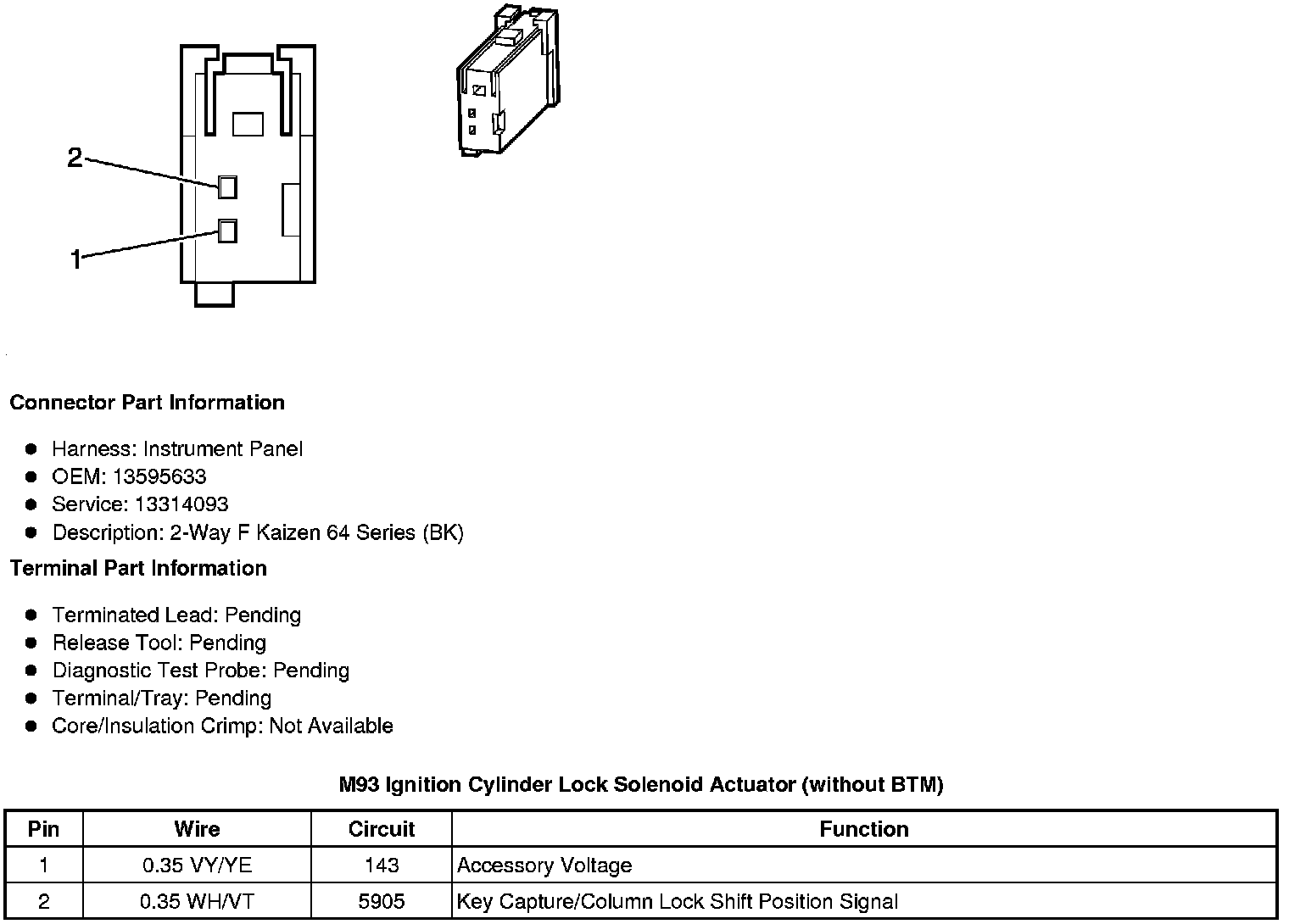

Component Connector End Views
M93 Ignition Cylinder Lock Solenoid
Actuator
(without BTM)
