Home >> Buick >> 2010 >> Lucerne V8-4.6L >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Telescoping Wheel Motor >> Diagrams

Telescoping Wheel Motor: Diagrams




Component Connector End Views

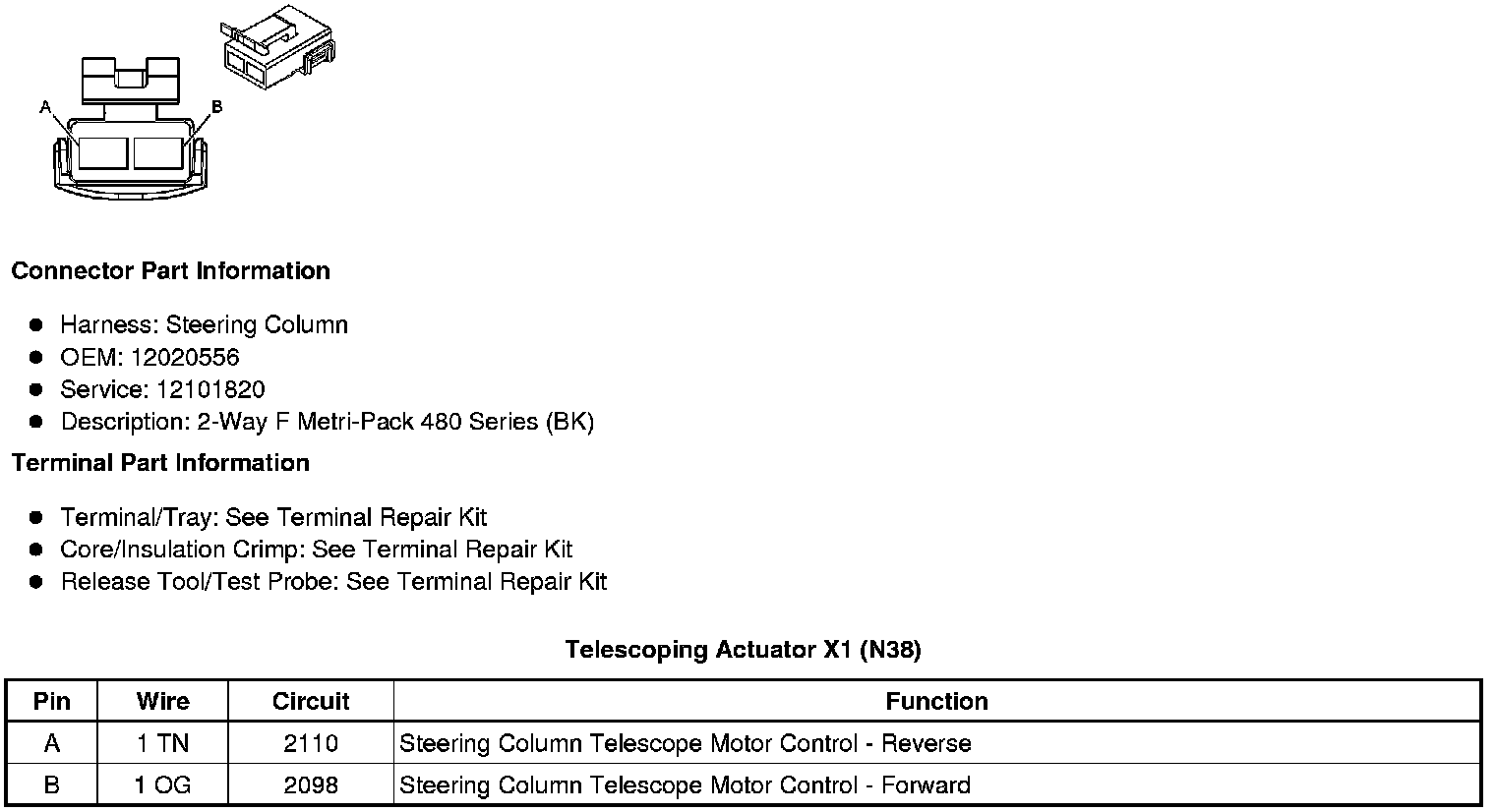

Telescoping Actuator X1 (N38)

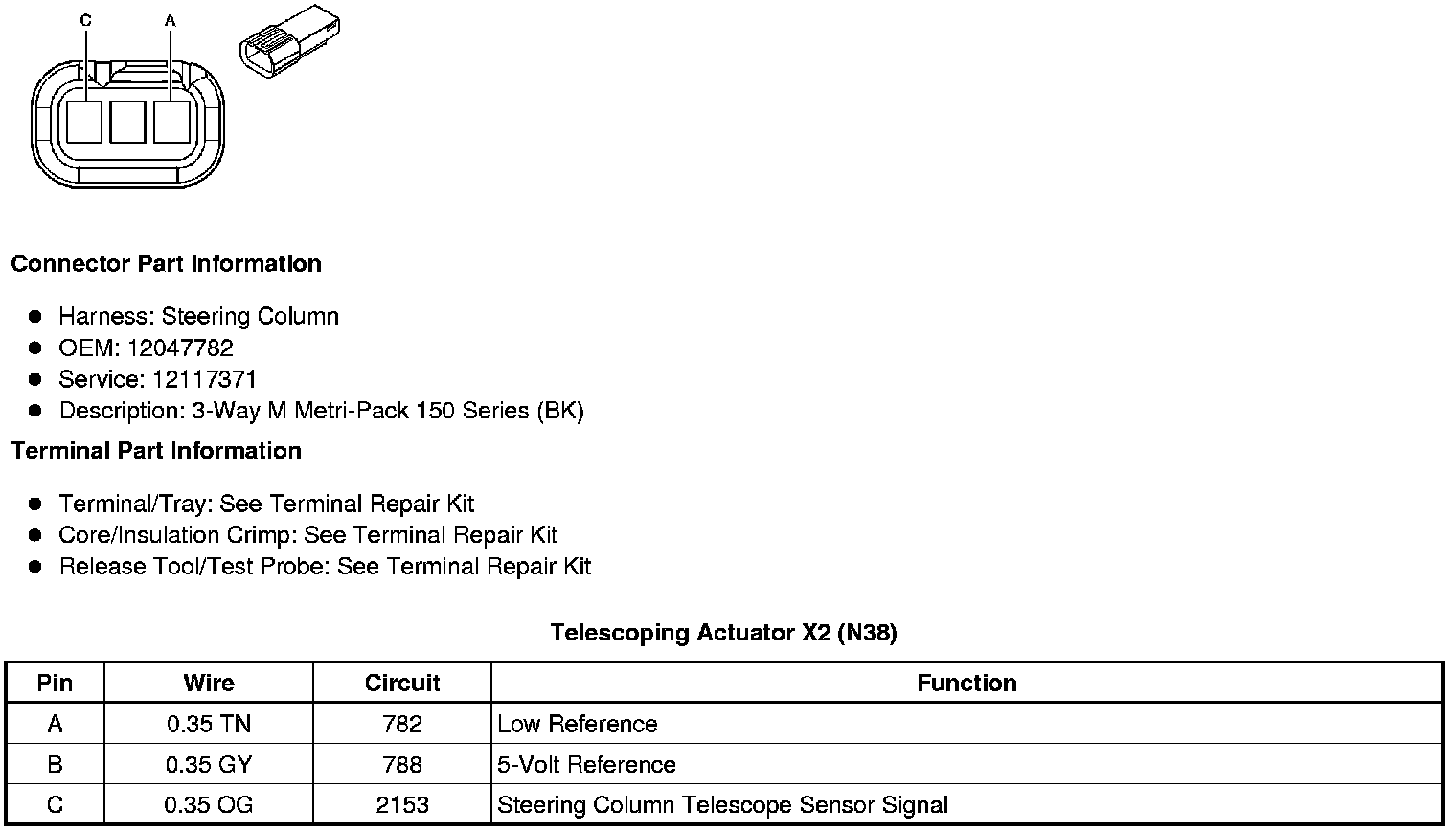

Telescoping Actuator X2 (N38)
