Radio/Stereo
>>
System Diagram
System Diagram
Component Connector End Views

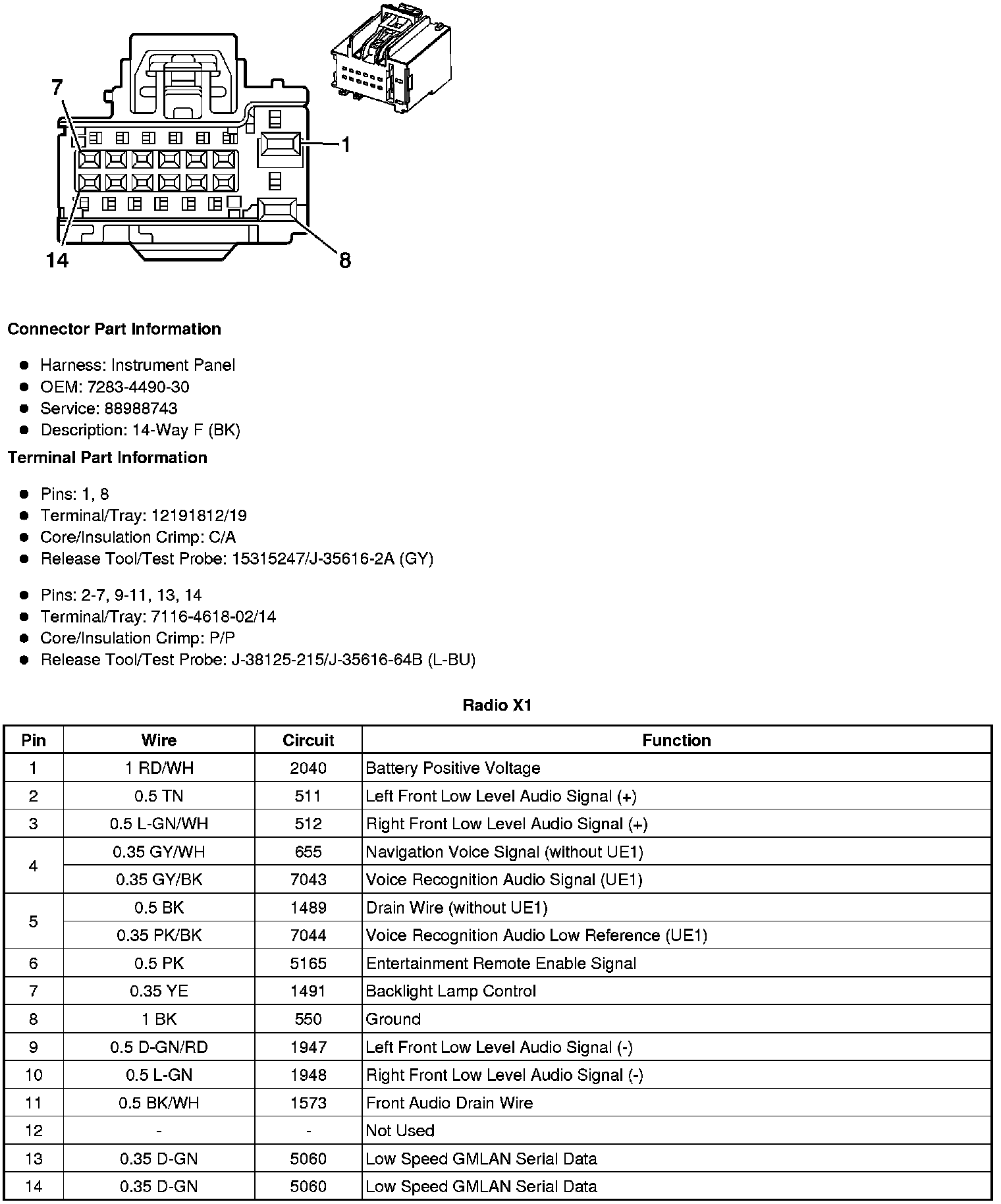

Radio X1

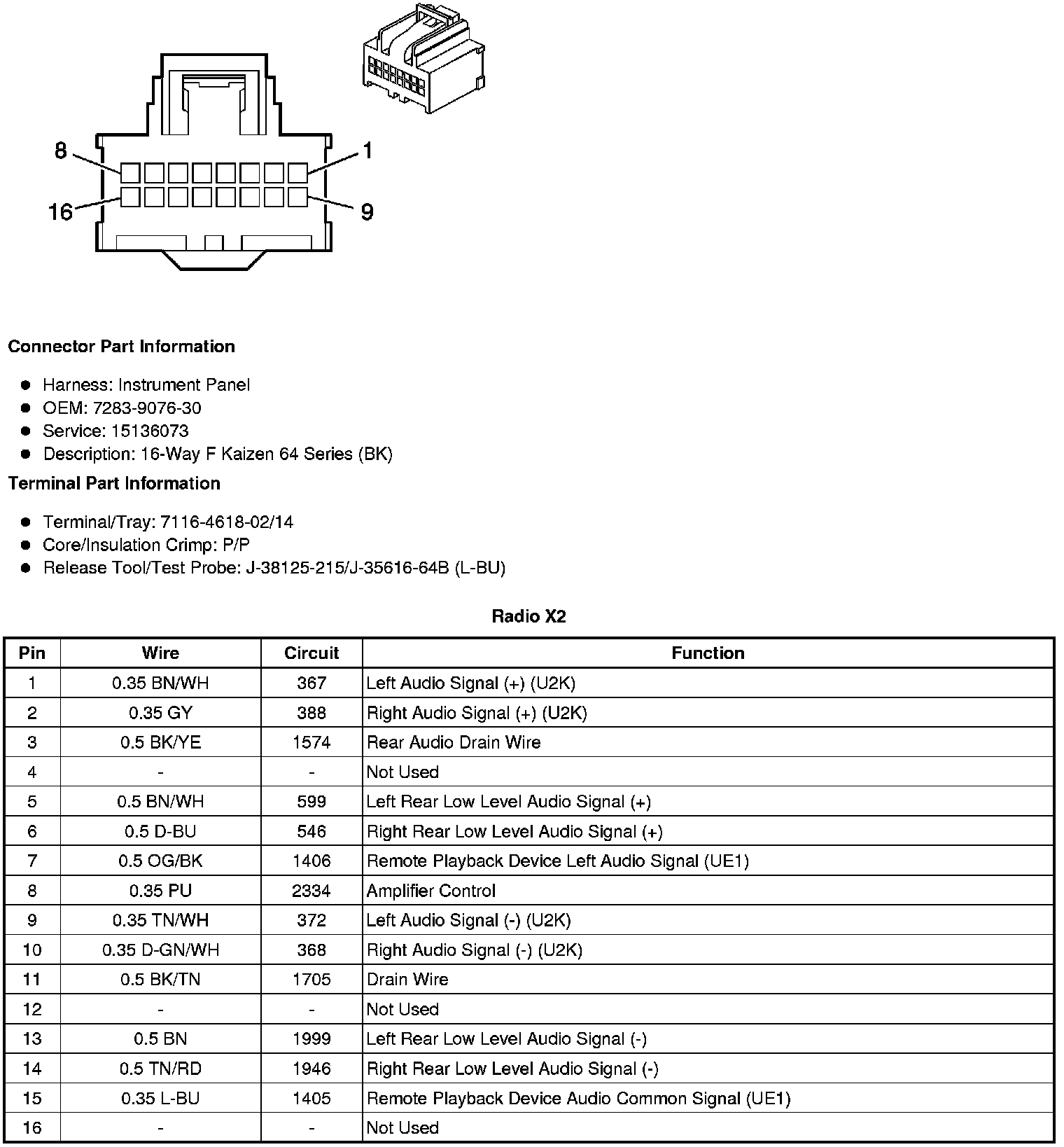

Radio X2

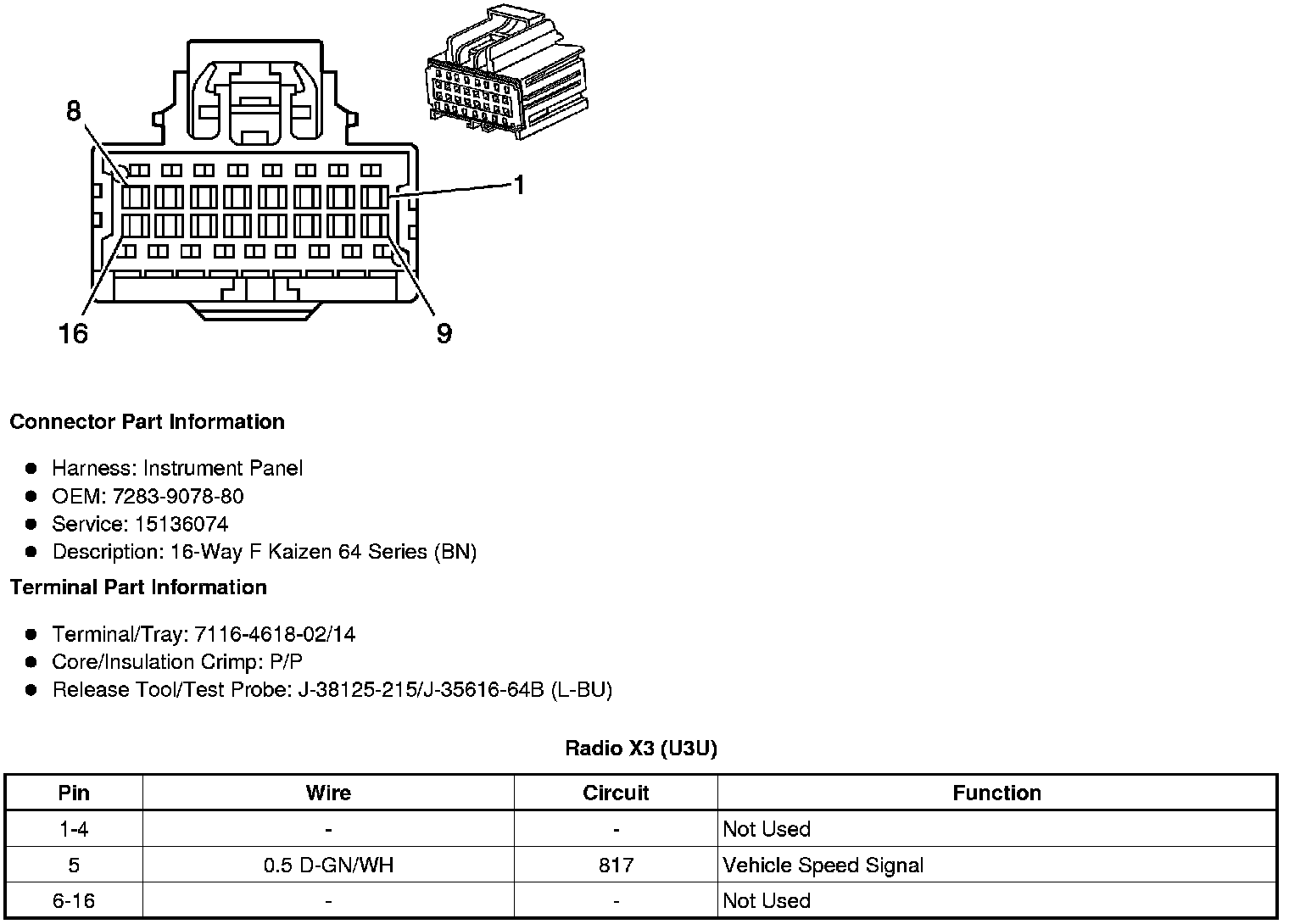

Radio X3 (U3U)
