Home
>>
Buick
>>
2010
>>
Lucerne V6-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
X300 - X399
>>
X399
X399

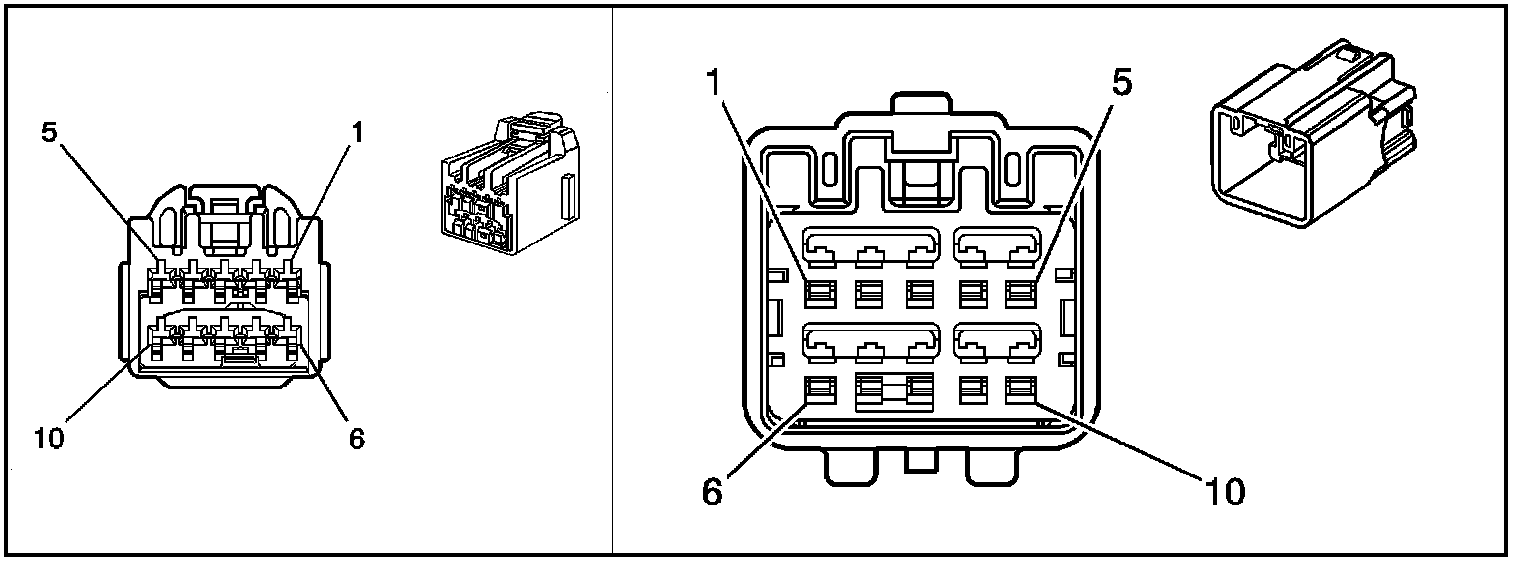

Inline Harness Connector End Views

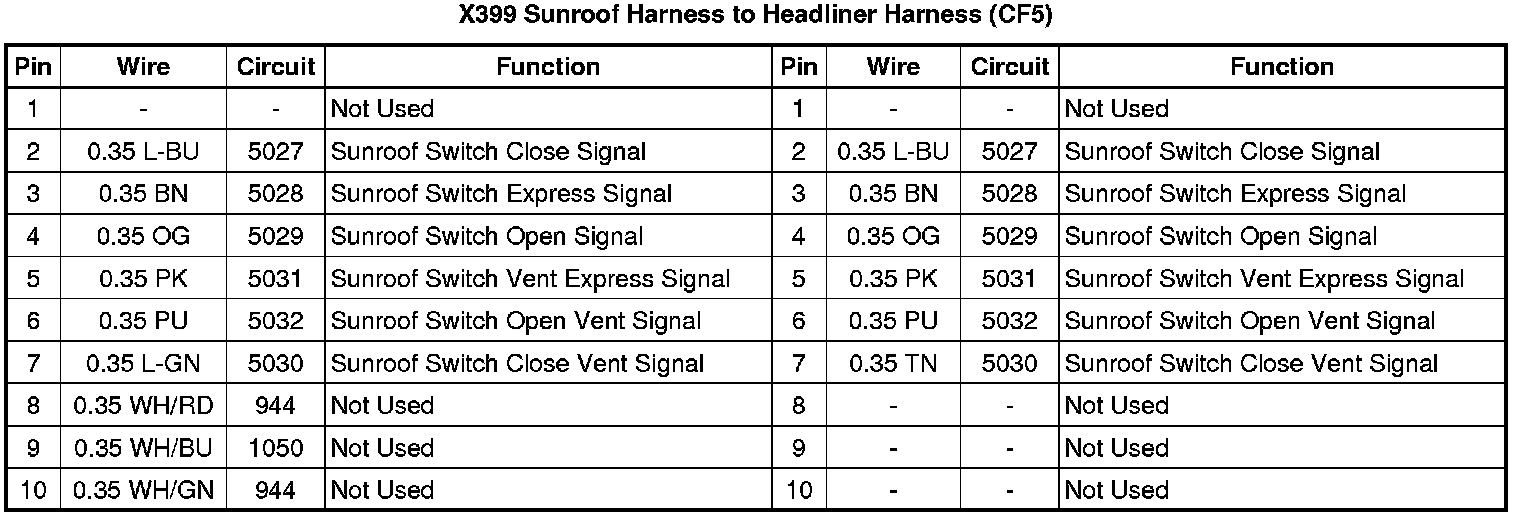

X399 Sunroof Harness to Headliner Harness (CF5)
