Home
>>
Buick
>>
2010
>>
LaCrosse FWD L4-2.4L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

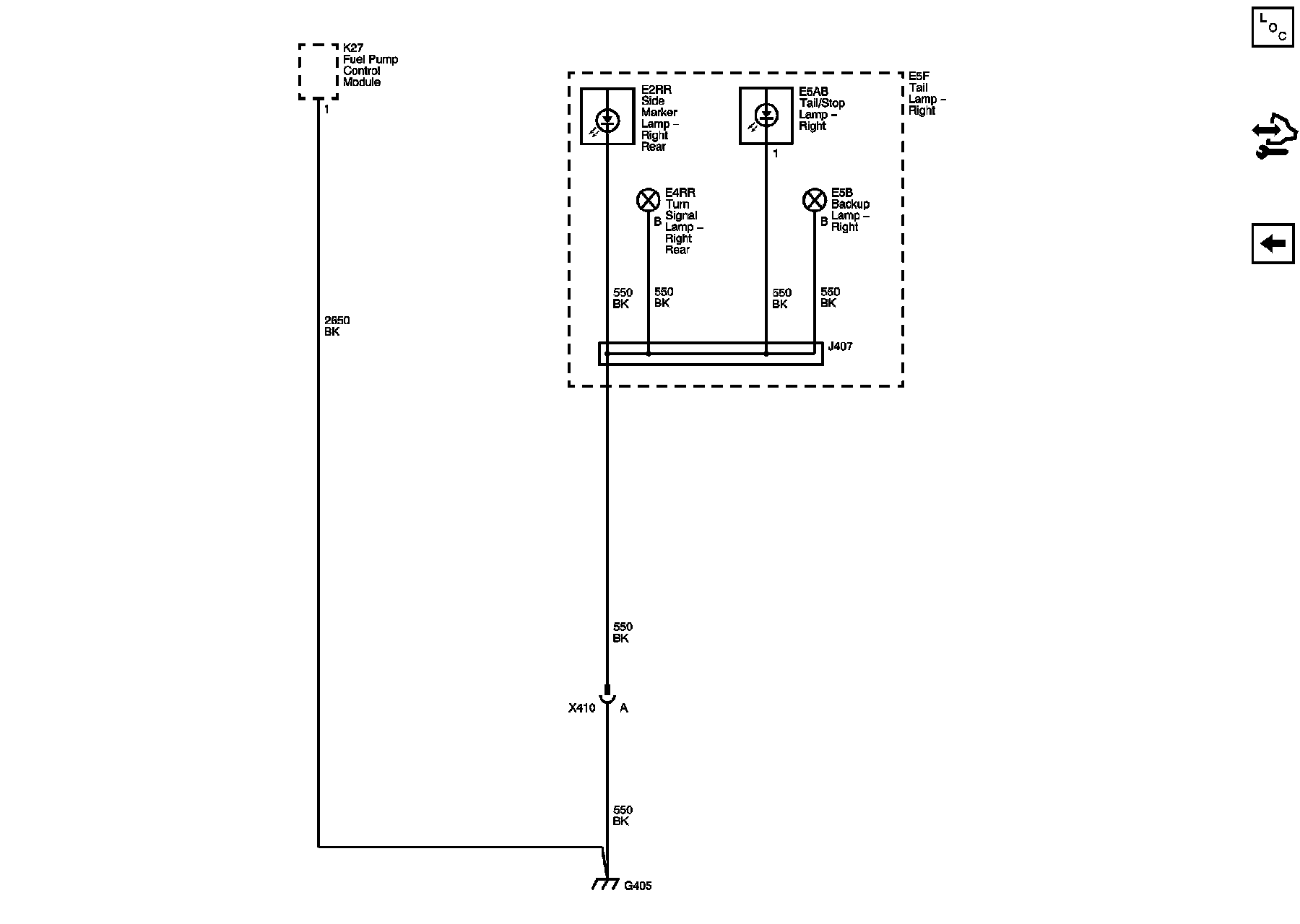

Ground Distribution Schematics
>>
G405
G405
Ground Distribution Schematics
G405
