Home
>>
Buick
>>
2010
>>
LaCrosse FWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ignition Switch
Ignition Switch
Component Connector End Views

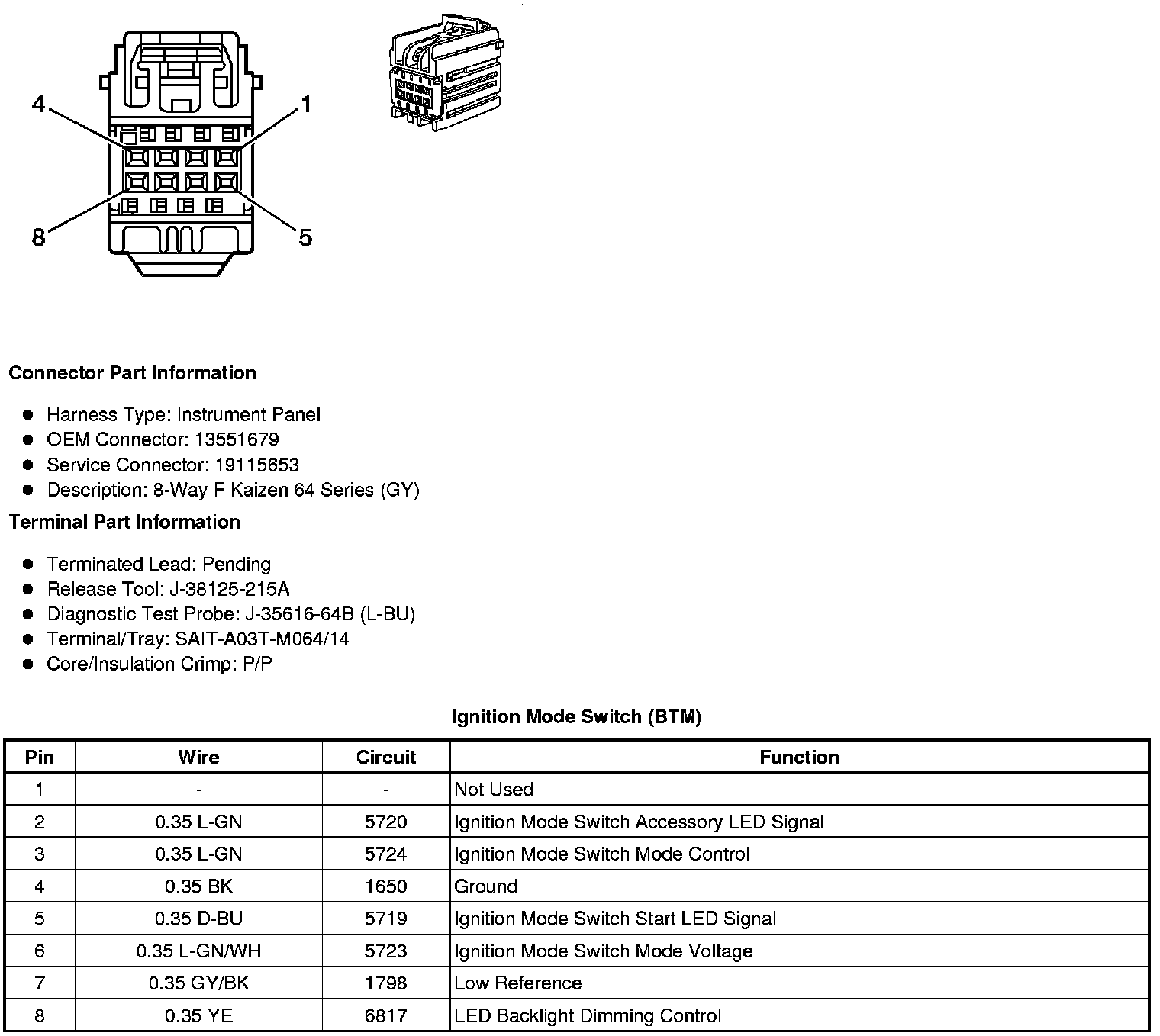

Ignition Mode Switch (BTM)

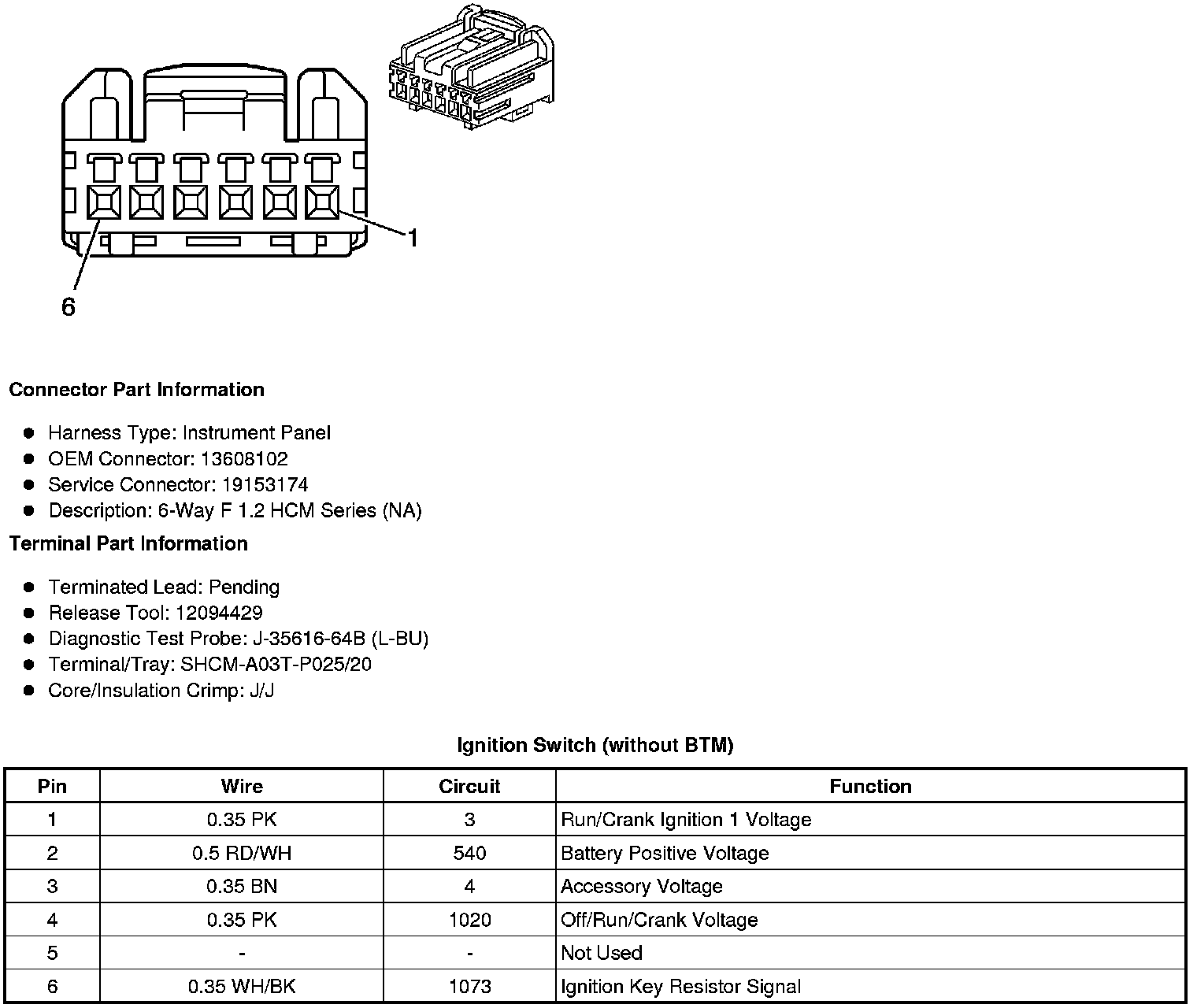

Ignition Switch
(without BTM)
