Home
>>
Buick
>>
2010
>>
LaCrosse FWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Number
>>
X300 - X399
>>
X397
X397

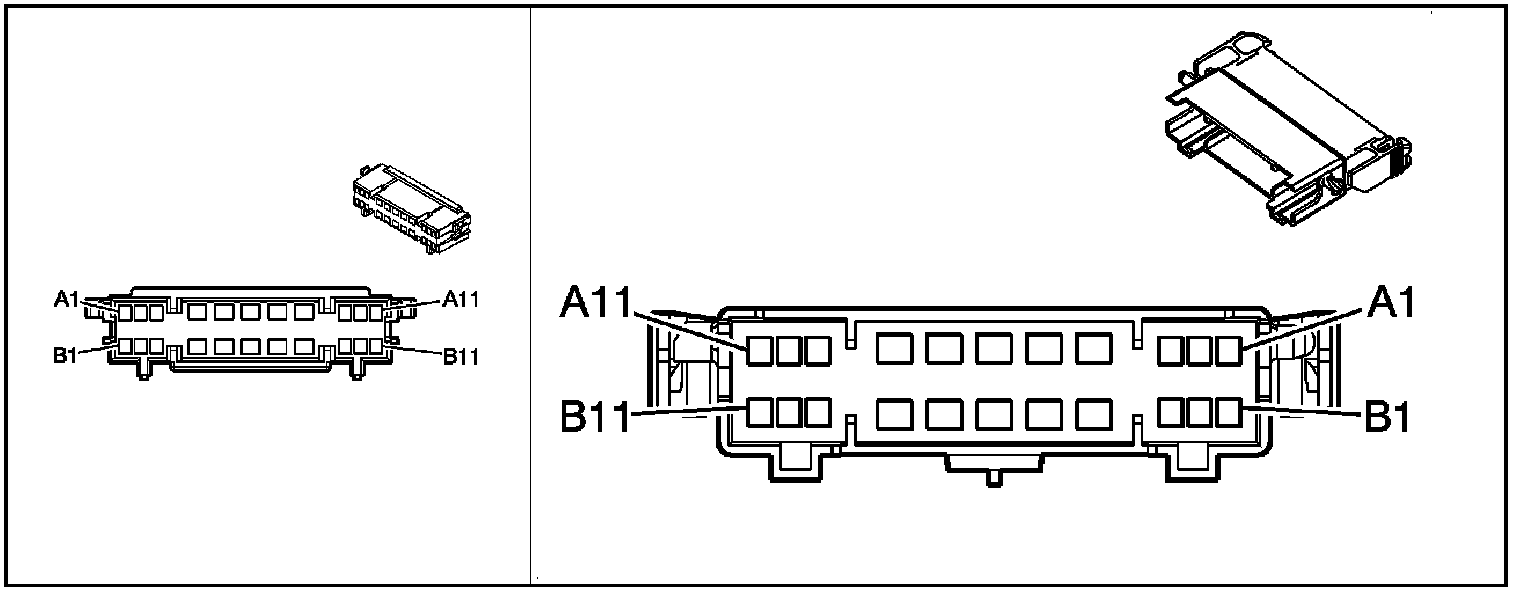

Inline Harness Connector End Views

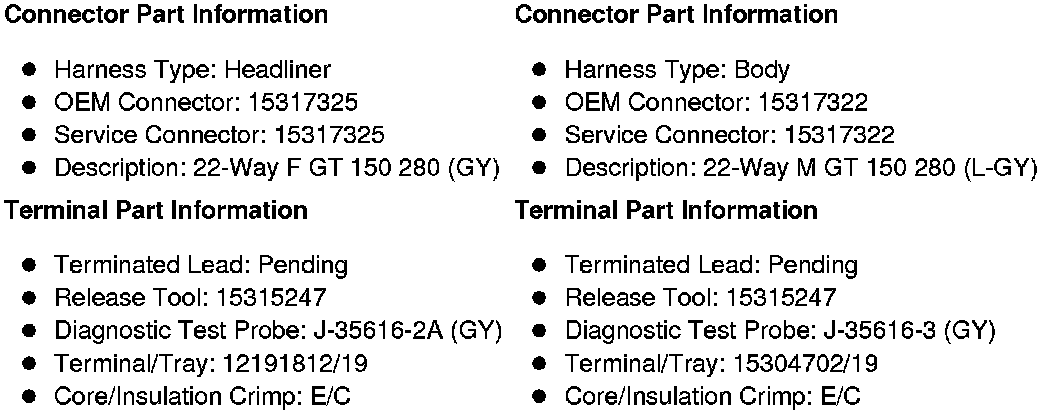

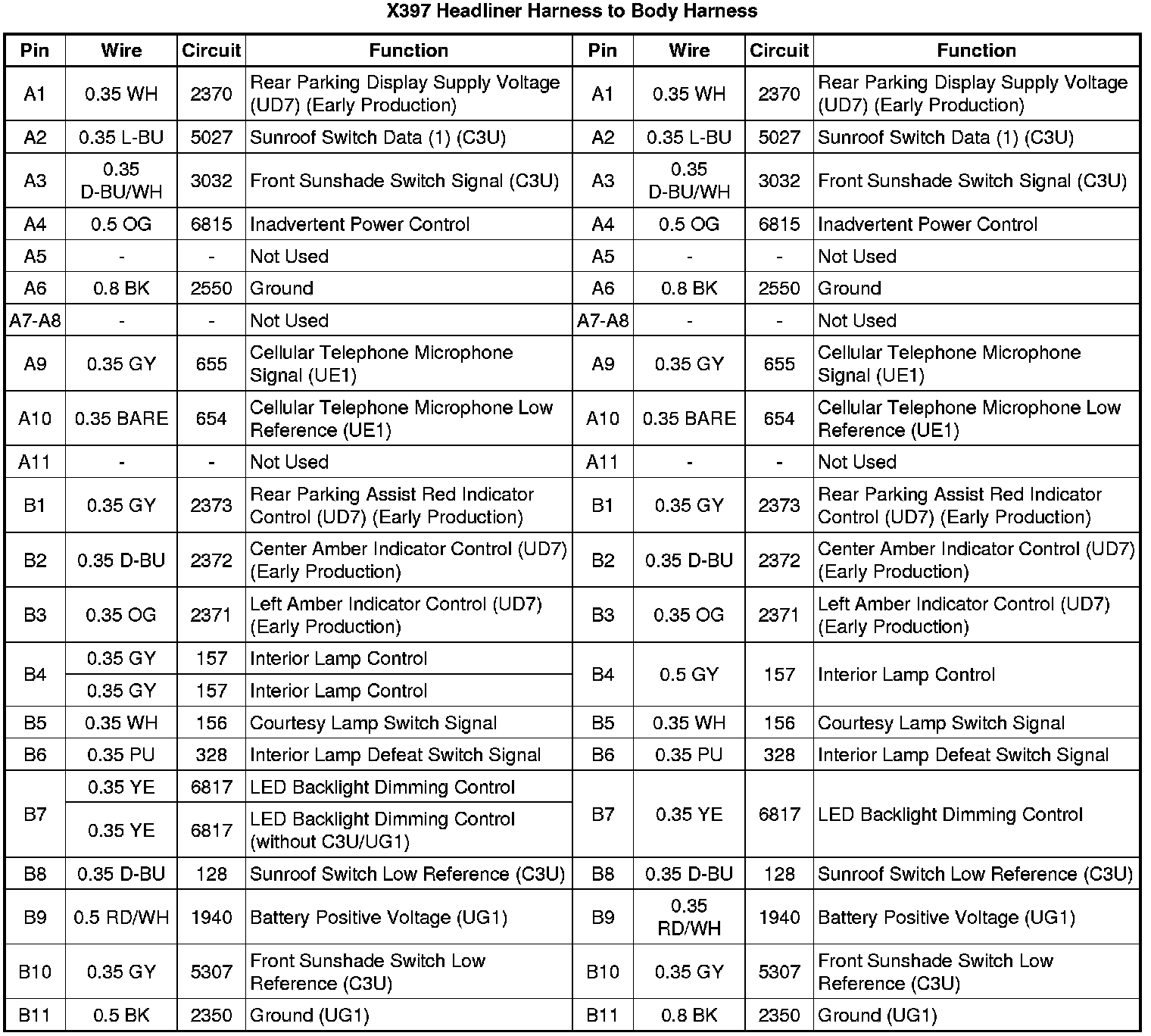

X397 Headliner Harness to Body Harness
