Actuator, Differential Lock
Actuator, Differential Lock

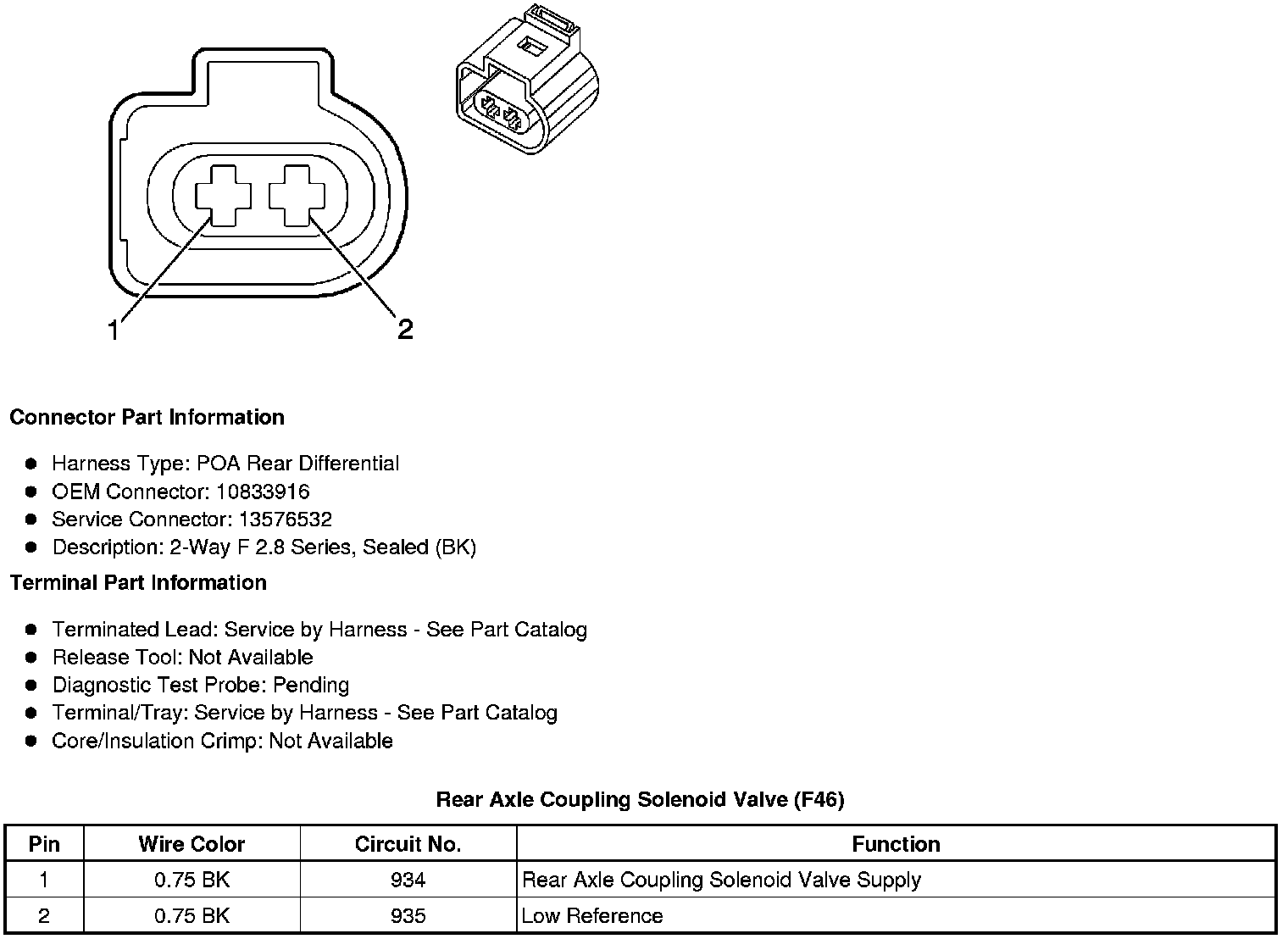

Component Connector End Views
Rear Axle Coupling Solenoid Valve (F46)
