Buick
>>
2010
>>
LaCrosse AWD V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Number
>>
X300 - X399
>>
X301
X301

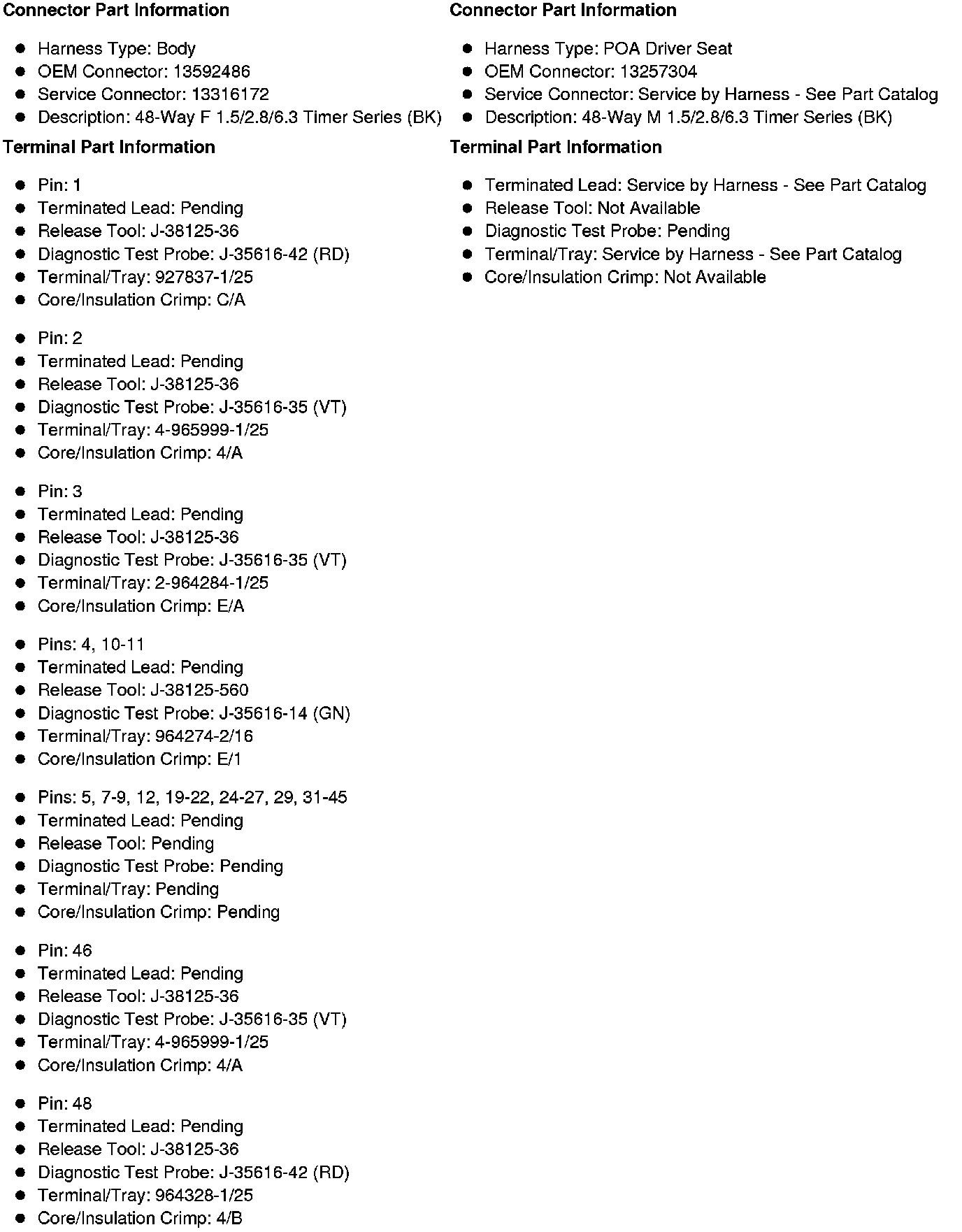

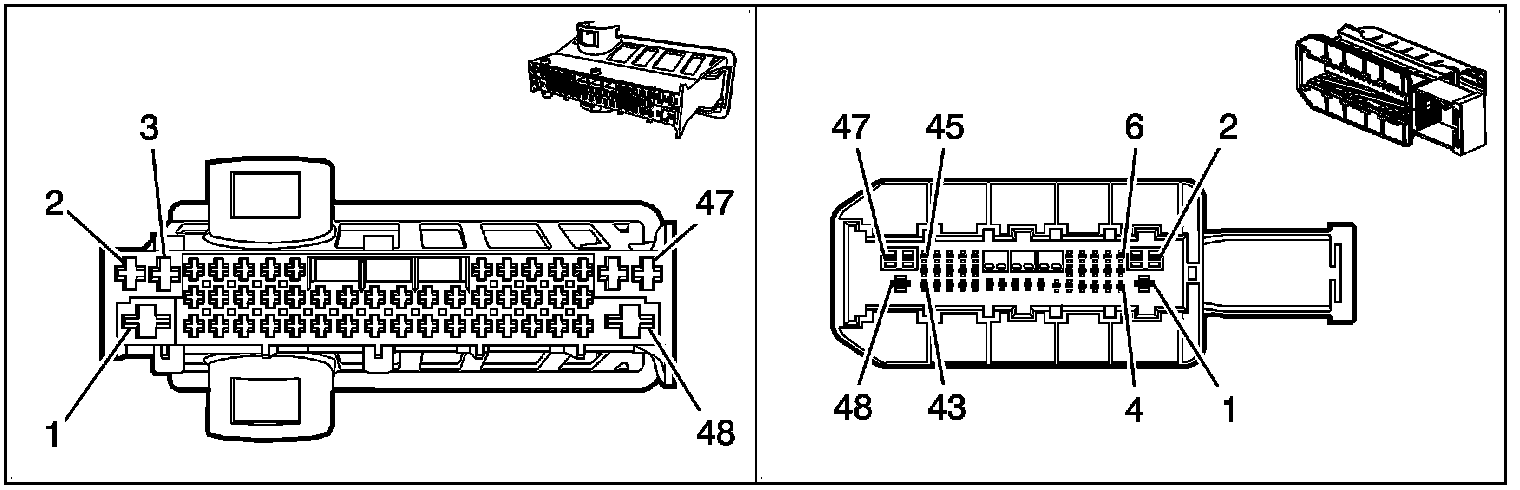

Inline Harness Connector End Views

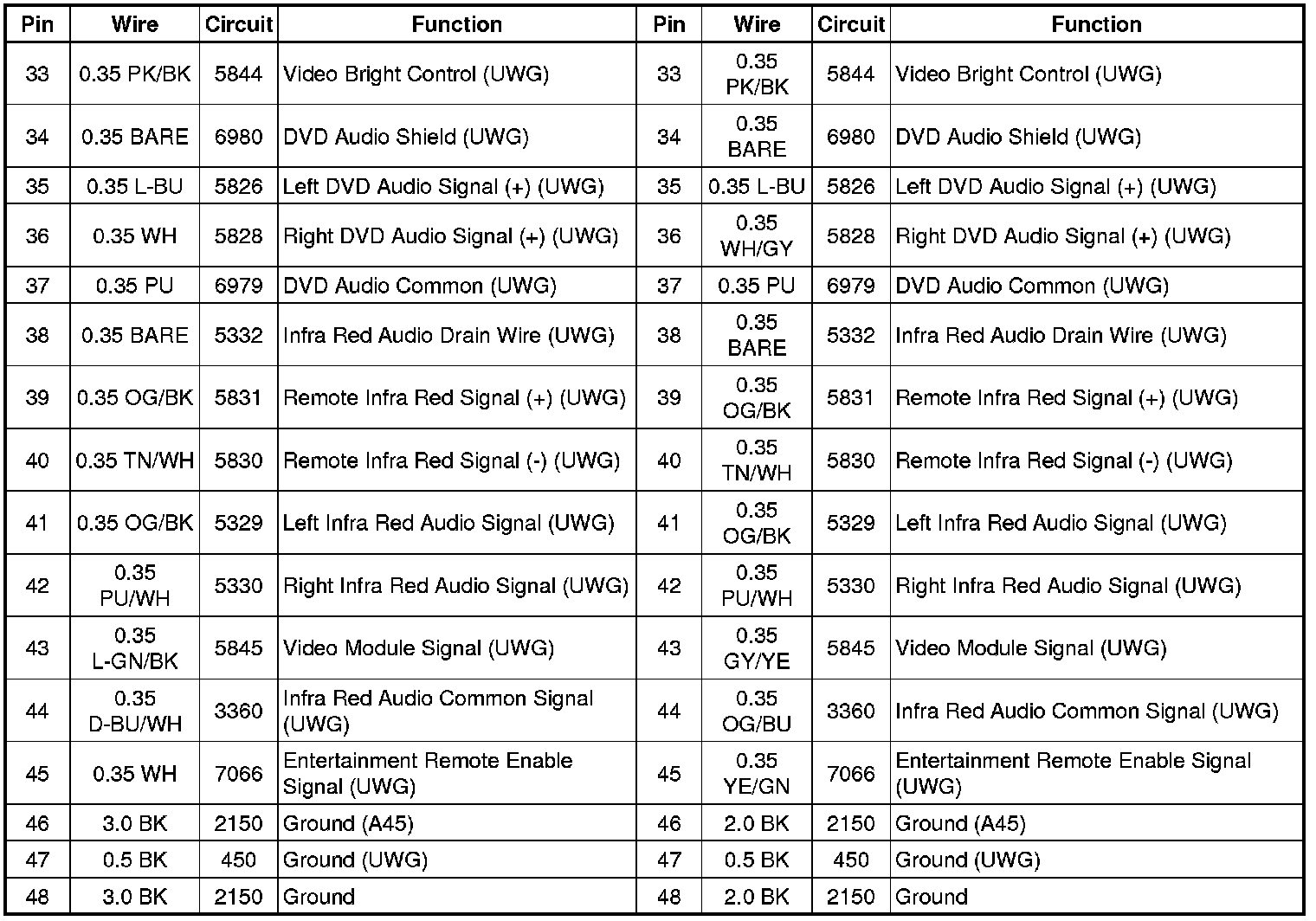

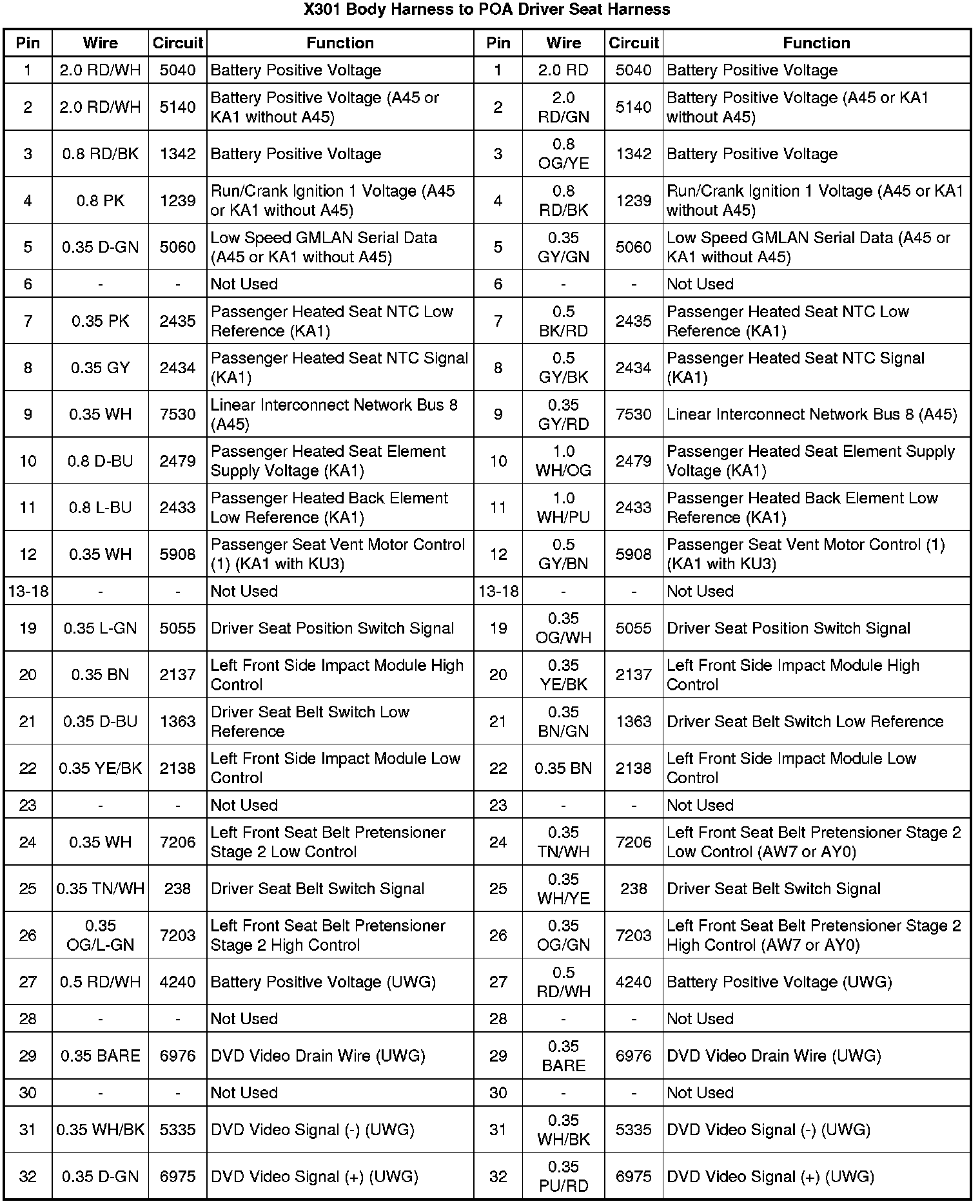

X301 Body Harness to POA Driver Seat Harness
