Engine Mount Strut Bracket Replacement - Right



Engine Mount Strut Bracket Replacement - Right Side (L26)

Removal Procedure

1. Disconnect the negative battery cable.




2. Remove the right engine mount strut at the upper engine mount strut bracket.




3. Loosen the lower engine mount strut bracket nut.
4. Remove the lower engine mount strut bracket bolts.

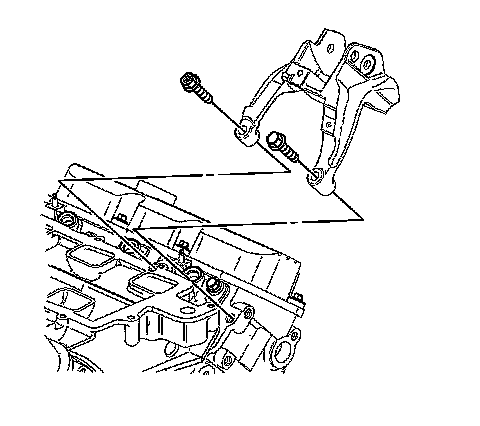

5. Remove the upper engine mount strut bracket bolts.
6. Remove the upper engine mount strut bracket.

Installation Procedure




1. Install the upper engine mount strut bracket.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the upper engine mount strut bracket bolts.

Tighten the bolts to 50 N.m (37 lb ft).




3. Install the lower engine mount strut bracket bolts.
* Tighten the lower engine mount strut bracket nut.

Tighten the nut to 30 N.m (22 lb ft).

* Tighten the lower engine mount strut bracket bolts.

Tighten the bolts to 50 N.m (37 lb ft).




4. Install the right engine mount strut at the upper engine mount strut bracket.
5. Connect the negative battery cable.
