Radio Front Side Door Speaker Replacement

Radio Front Side Door Speaker Replacement

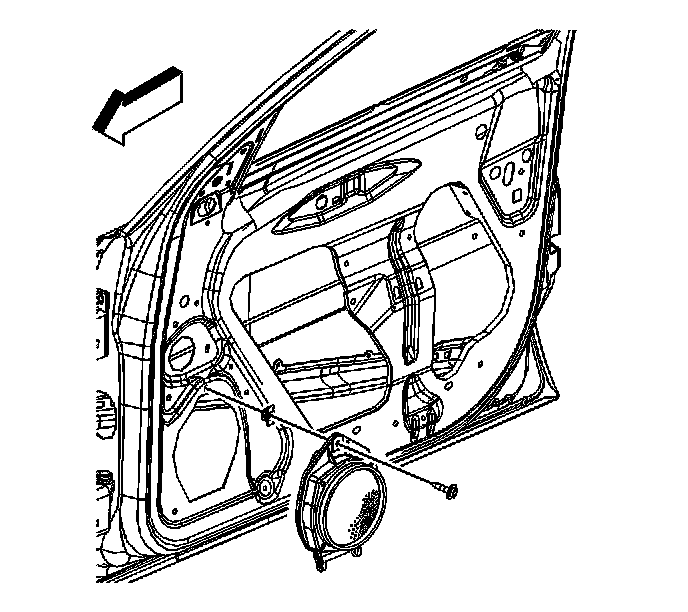

Removal Procedure

1. Remove the front door trim panel.




2. Remove the front door speaker retaining screw.
3. Disconnect the electrical connector from the front door speaker.
4. Remove the speaker from the front door.

Installation Procedure




1. Connect the electrical connector to the front door speaker.
2. Install the speaker to the front door.

Notice: Refer to Fastener Notice.

3. Install the front door speaker retaining screw.

Tighten the front door speaker retaining screw to 2 N.m (18 lb in).

4. Install the front door trim panel.
