Evaporative Emissions Hose: Service and Repair

Evaporative Emission Hoses/Pipes Replacement - Chassis/Canister

Removal Procedure

1. Raise and support the vehicle. Refer to Vehicle Lifting.

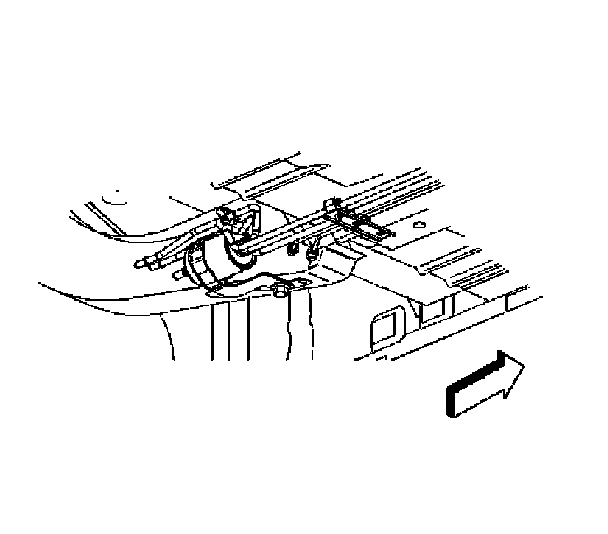

2. Disconnect the evaporative emission (EVAP) purge pipe connector at the fuel filter area.




3. Disconnect the EVAP purge pipe (8) from the EVAP canister (1).
4. Remove the EVAP purge pipe (8).

Installation Procedure




1. Connect the EVAP purge pipe (8) to the EVAP canister.




2. Connect the EVAP purge pipe at the fuel filter area.
3. Lower the vehicle.
