Canister Vent Valve: Service and Repair

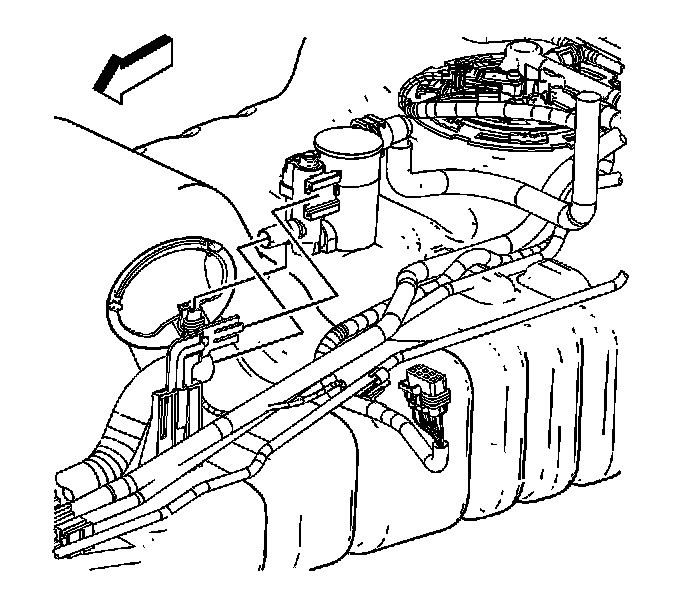

Evaporative Emission Canister Vent Solenoid Valve Replacement

Removal Procedure

1. Remove the fuel tank.




2. Disconnect the evaporative emission (EVAP) canister vent solenoid harness connector.
3. Remove the EVAP vent hose from EVAP canister solenoid.
4. Depress the EVAP canister vent bracket tab to release the EVAP canister vent solenoid.
5. Remove the EVAP canister solenoid from the fuel tank.

Installation Procedure




1. Slide the EVAP canister vent solenoid on the EVAP canister vent bracket until the solenoid snaps into place.
2. Connect the EVAP vent hose to the EVAP canister vent solenoid.
3. Connect the EVAP canister vent solenoid harness connector.
4. Install the fuel tank.
