Engine Mount Strut Replacement - Right

Engine Mount Strut Replacement - Right Side

Removal Procedure

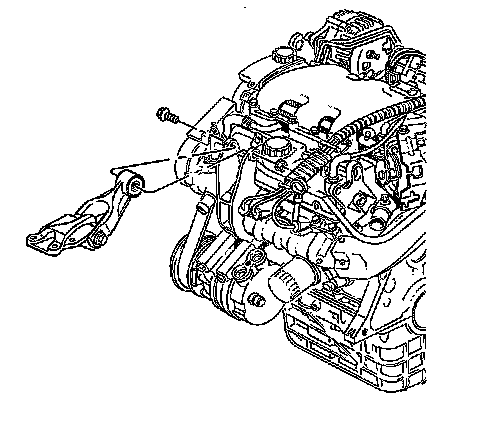

1. Remove the bolt and the nut from the engine mount strut at the right engine mount strut bracket on the engine.




2. Remove the bolt and the nut from the engine mount strut at the engine mount strut bracket on the upper radiator support.
3. Remove the engine mount strut.
4. Inspect the rubber in the engine mount strut for the following conditions:
* Hardness
* Splitting
* Cracking

Installation Procedure




1. Install the engine mount strut.
2. Install the bolt and the nut to the engine mount strut at the engine mount strut bracket on the upper radiator support. HAND TIGHTEN ONLY.





Notice: Refer to Fastener Notice in Service Precautions.

3. Install the bolt and the nut to the engine mount strut at the right engine mount strut bracket on the engine.

Tighten both engine mount strut nuts to 48 N.m (35 lb ft).
