Buick
>>
2007
>>
Allure (CANADA) V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ignition Switch
Ignition Switch

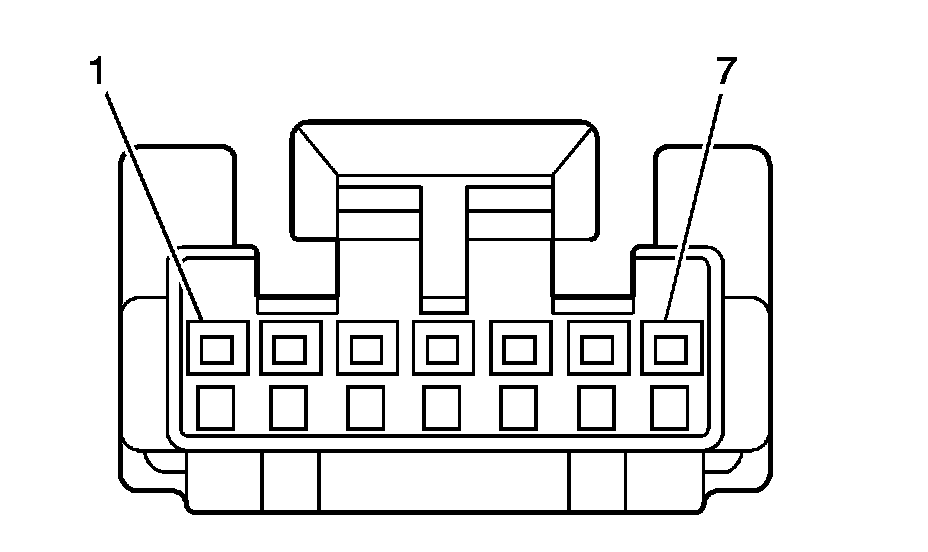

Power and Grounding Connector End Views

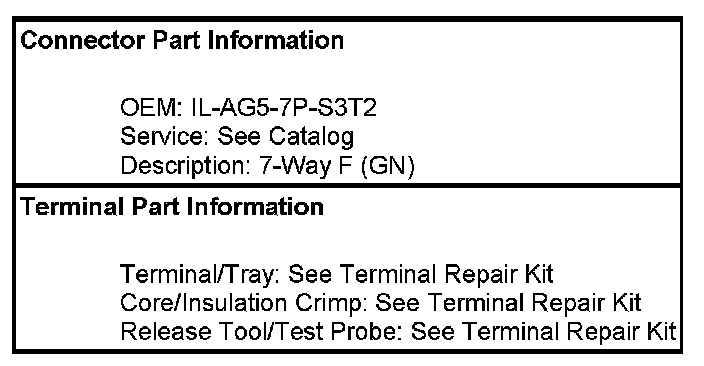

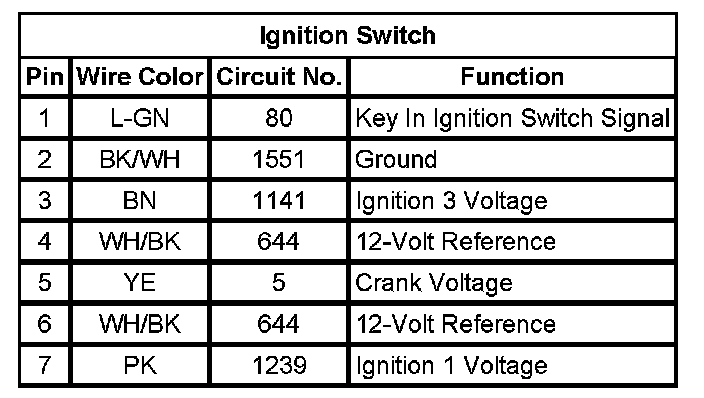

Ignition Switch
