Seat Belt Replacement - Center Rear
SEAT BELT REPLACEMENT - CENTER REARREMOVAL PROCEDURE
1. Remove the rear seat cushion.

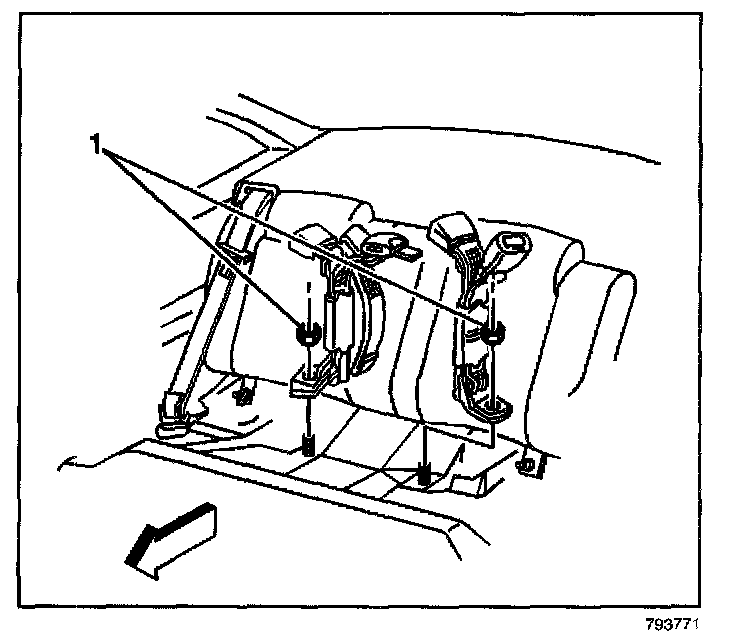

2. Remove the center seat belts nuts (1).
3. Remove the center seat belts from the vehicle.
INSTALLATION PROCEDURE
IMPORTANT: Verify that the rear seat belt anchors are installed in their proper orientation.
1. Install the center seat belts to the vehicle.
NOTE: Refer to Fastener Notice in Service Precautions.

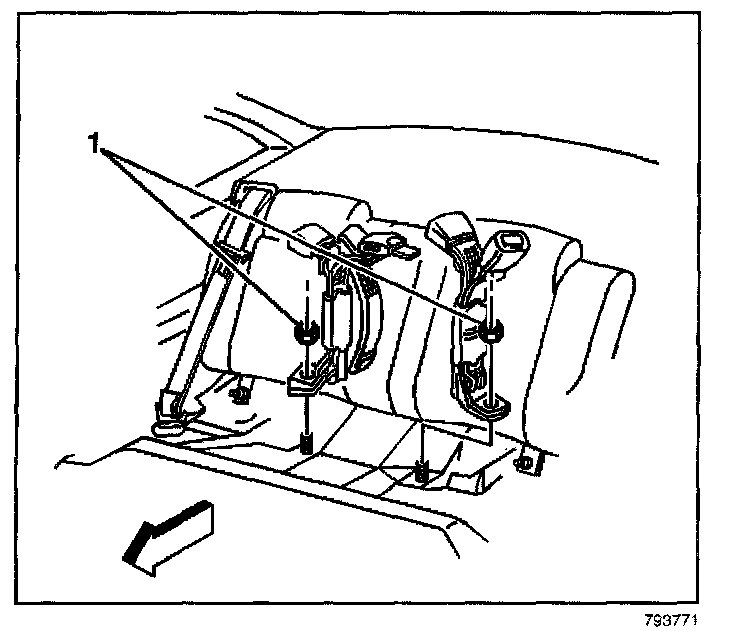

2. Install the center seat belts nuts (1).
Tighten
Tighten the nuts to 42 N.m (31 lb ft).
IMPORTANT: Be sure to route the buckle correctly through the rear seat cushion.
3. Install the rear seat cushion.
