Home >> Buick >> 2004 >> Regal V6-3.8L VIN K >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Knock Sensor >> Diagrams

Knock Sensor: Diagrams

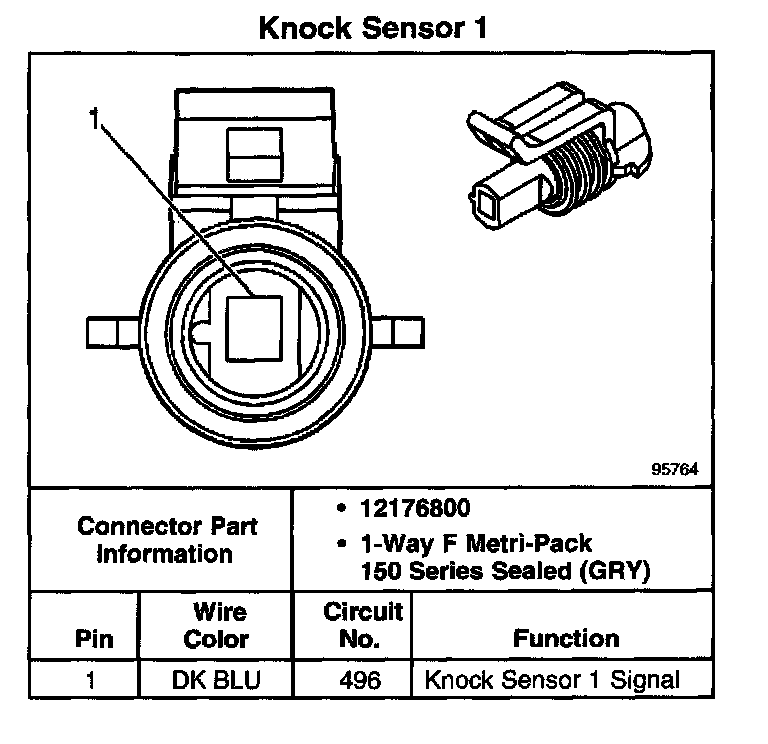

Knock Sensor 1:

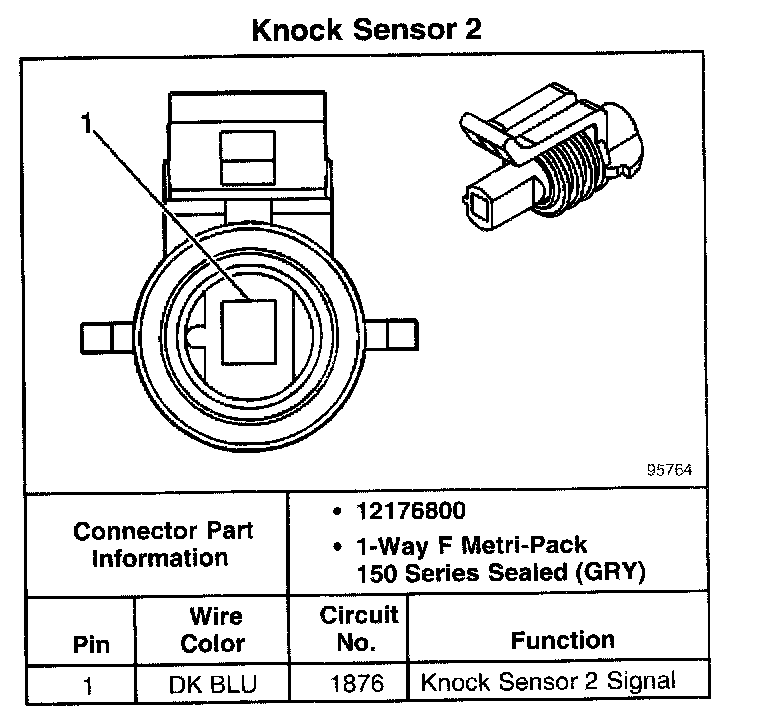

Knock Sensor 2:
