Buick
>>
2004
>>
Regal V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution Diagrams
>>
G201
G201

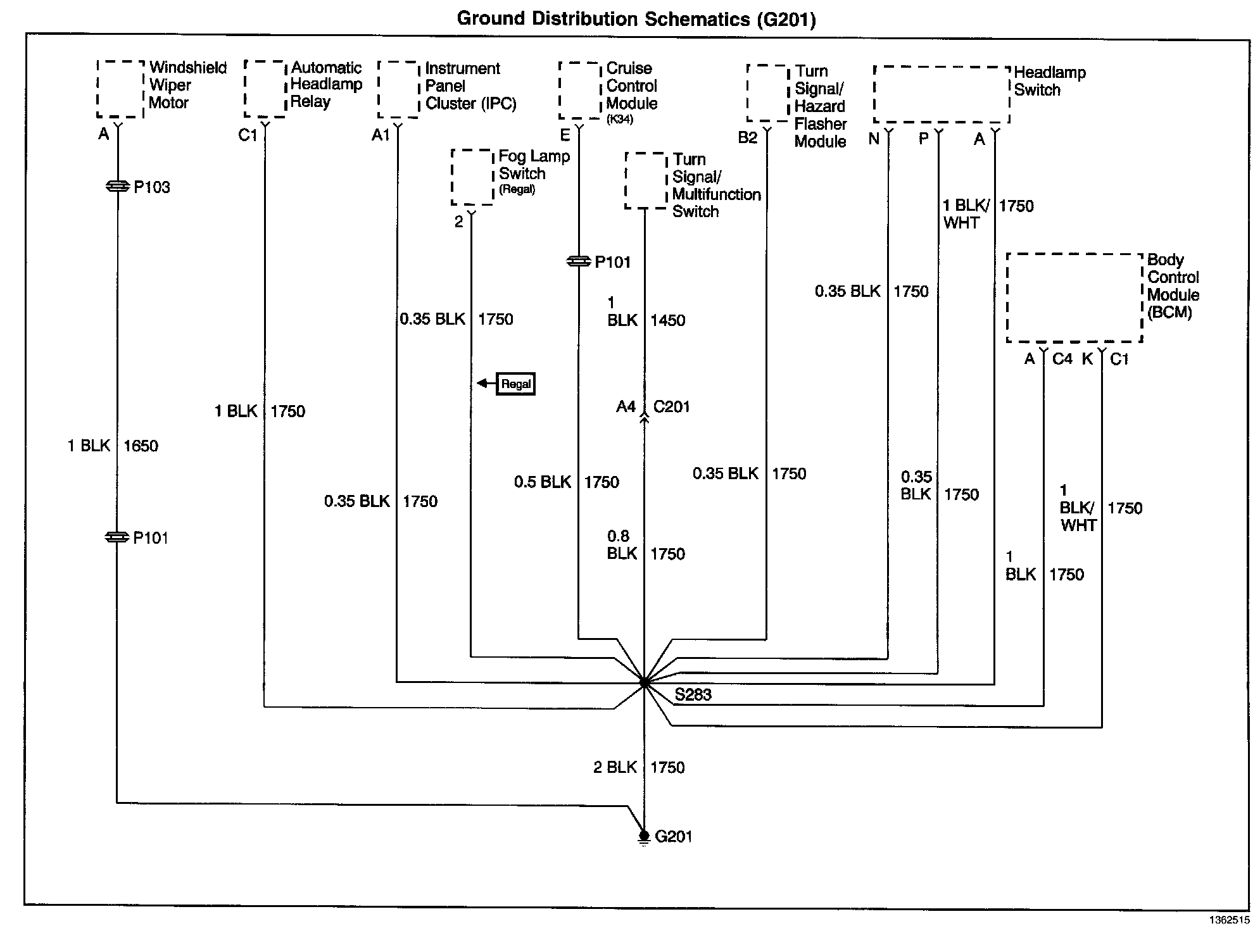

Ground Distribution Diagram 4:
