SIR Disabling and Enabling Zone 7
SIR DISABLING AND ENABLING ZONE 7DISABLING PROCEDURE
IMPORTANT: Refer to SIR Service Precautions.
1. Turn the steering wheel so that the vehicle's wheels are pointing straight ahead.
2. Turn OFF the ignition.
3. Remove the key from the ignition switch.
4. Remove the fuse block access cover.
IMPORTANT: With the SIR Fuse removed and the ignition ON, the AIR BAG indicator illuminates. This is normal operation, and does not indicate an SIR system malfunction.

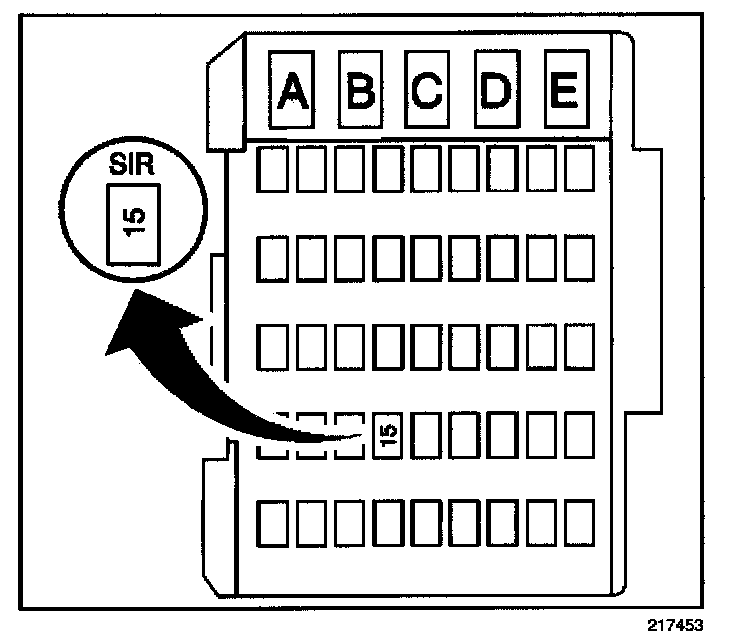

5. Remove the SIR Fuse.

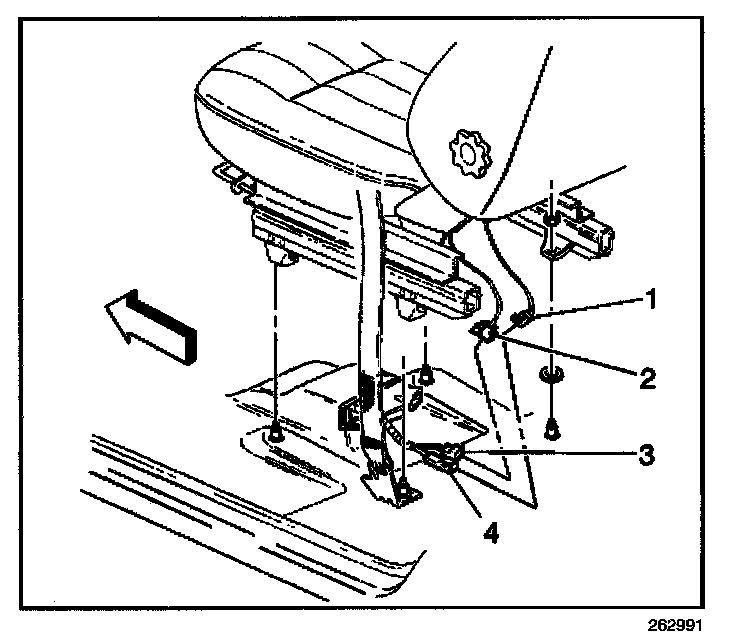

6. Remove the connector position assurance (CPA) from the side impact module - LF connector (4) located under the driver seat.
7. Disconnect the side impact module - LF connector (4).
ENABLING PROCEDURE

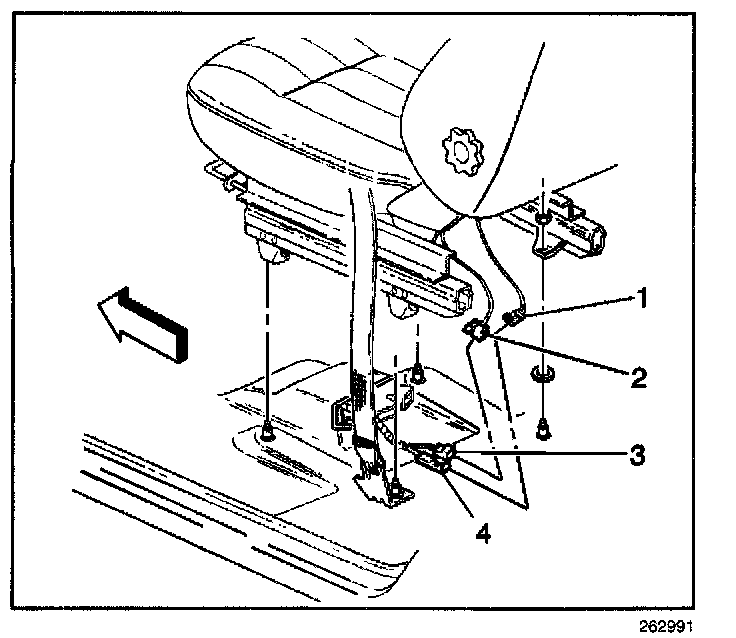

1. Connect the inflatable restraint side impact module - LF connector (4) located under the driver seat.
2. Install the CPA to the side impact module - LF connector (4).
3. Install the SIR Fuse.
4. Install the fuse block access cover.
5. Staying well away from all inflator modules and pretensioners, turn ON the ignition.
5.1. The AIR BAG indicator will flash seven times.
5.2. The AIR BAG indicator will then turn OFF.
6. Perform Diagnostic System Check - Restraint Systems if the AIR BAG indicator does not operate as described.
