SIR Disabling and Enabling Zone 5

SIR DISABLING AND ENABLING ZONE 5

DISABLING PROCEDURE

IMPORTANT: Refer to SIR Service Precautions.




1. Turn the steering wheel so that the vehicle's wheels are pointing straight ahead.
2. Turn OFF the ignition.
3. Remove the key from the ignition switch.
4. Remove the I/P fuse block cover.

IMPORTANT: With the SIR Fuse removed and the ignition ON, the AIR BAG indicator illuminates. This is normal operation, and does not indicate an SIR system malfunction.

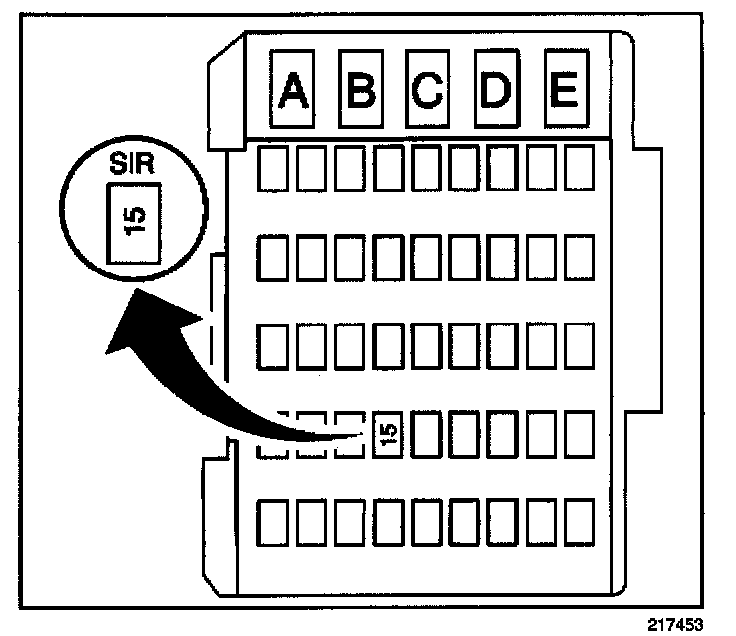

5. Remove the SIR Fuse.




6. Remove the LH insulator panel.

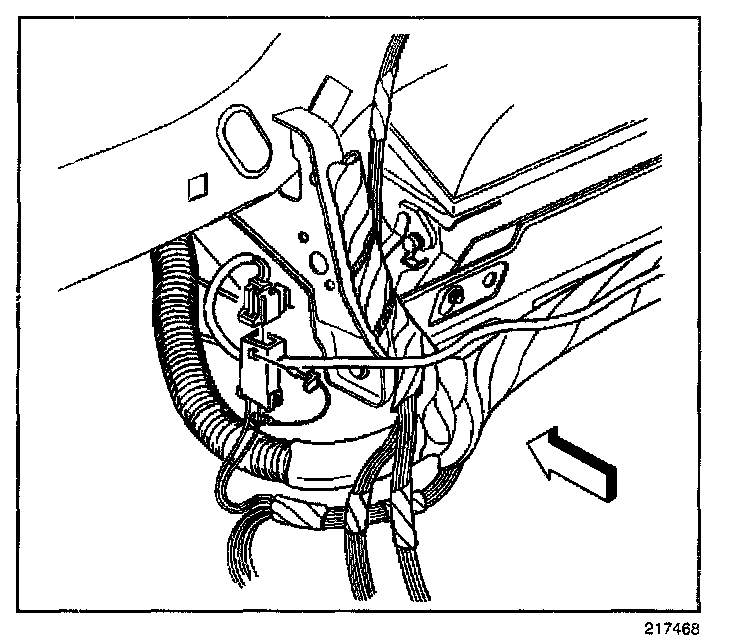

7. Remove the connector position assurance (CPA) from the inflatable restraint I/P module connector located to the right of the steering column.
8. Disconnect the I/P module connector.

ENABLING PROCEDURE




1. Remove the key from the ignition.
2. Connect the I/P module connector.

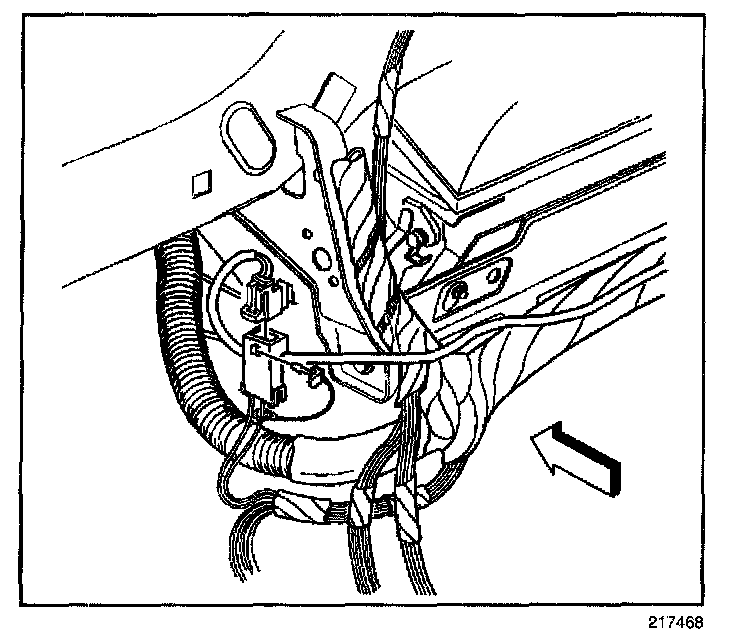

3. Install the CPA into the I/P module connector located to the right of the steering column.
4. Install the LH insulator panel.

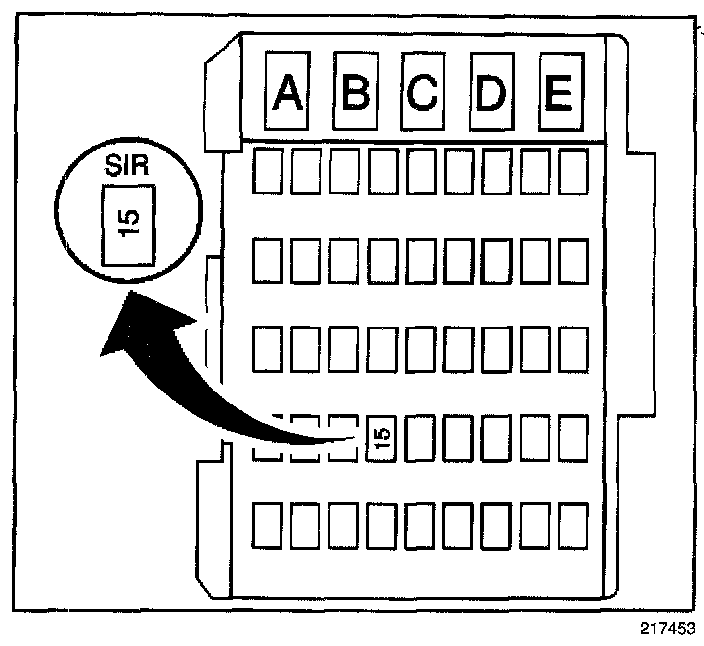

5. Install the SIR Fuse.
6. Install the I/P fuse block cover.
7. Staying well away from all inflator modules, turn ON the ignition.
7.1. The AIR BAG indicator will flash 7 times.
7.2. The AIR BAG indicator will then turn OFF.
8. Perform Diagnostic System Check - Restraint Systems if the AIR BAG indicator does not operate as described.
