Buick
>>
2004
>>
Regal V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
System Diagram
System Diagram

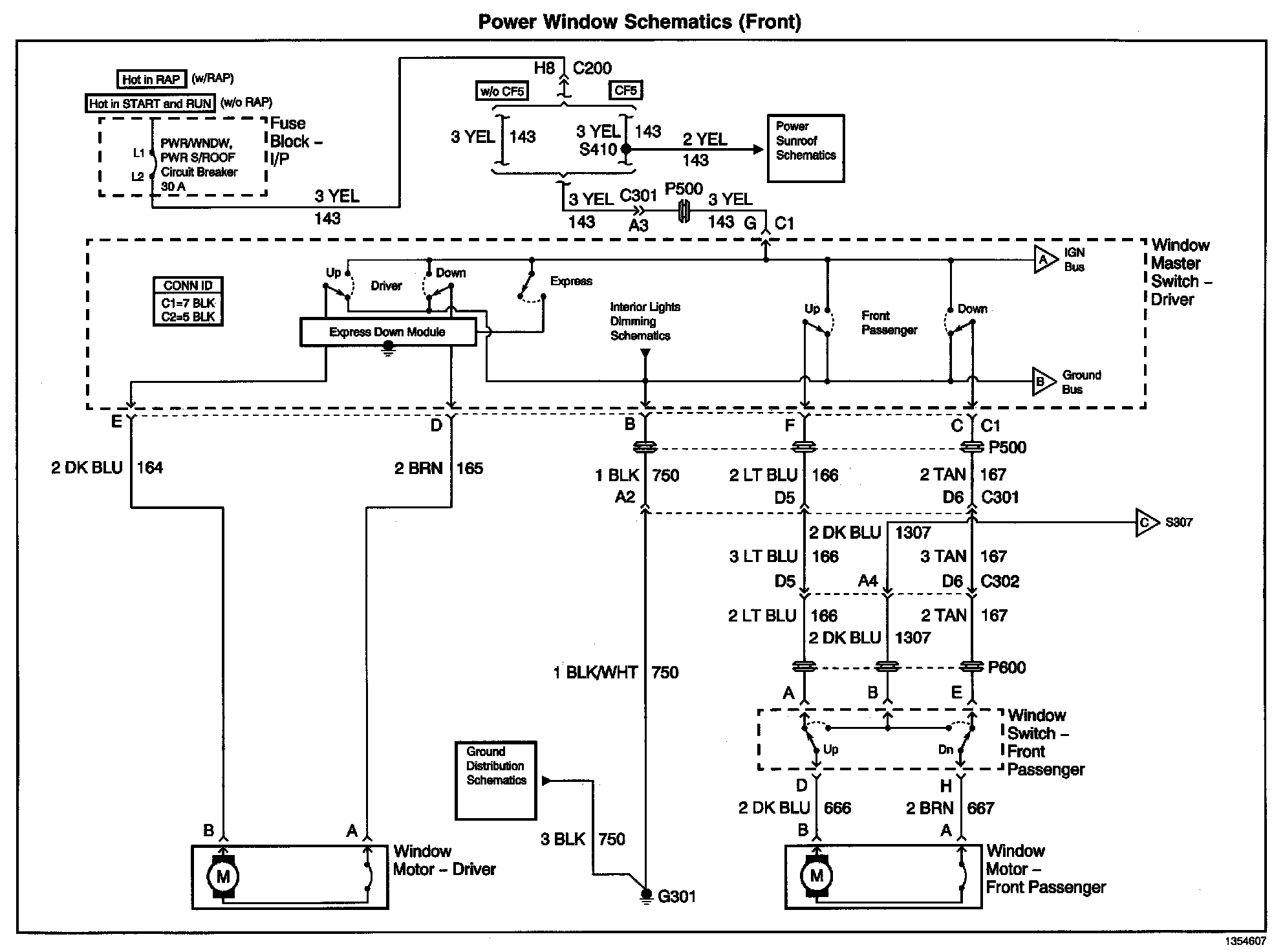

Power Window Diagram 1:
Power Window Diagram 2:
