Buick
>>
2004
>>
Regal V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C101 - C110
>>
C110
C110

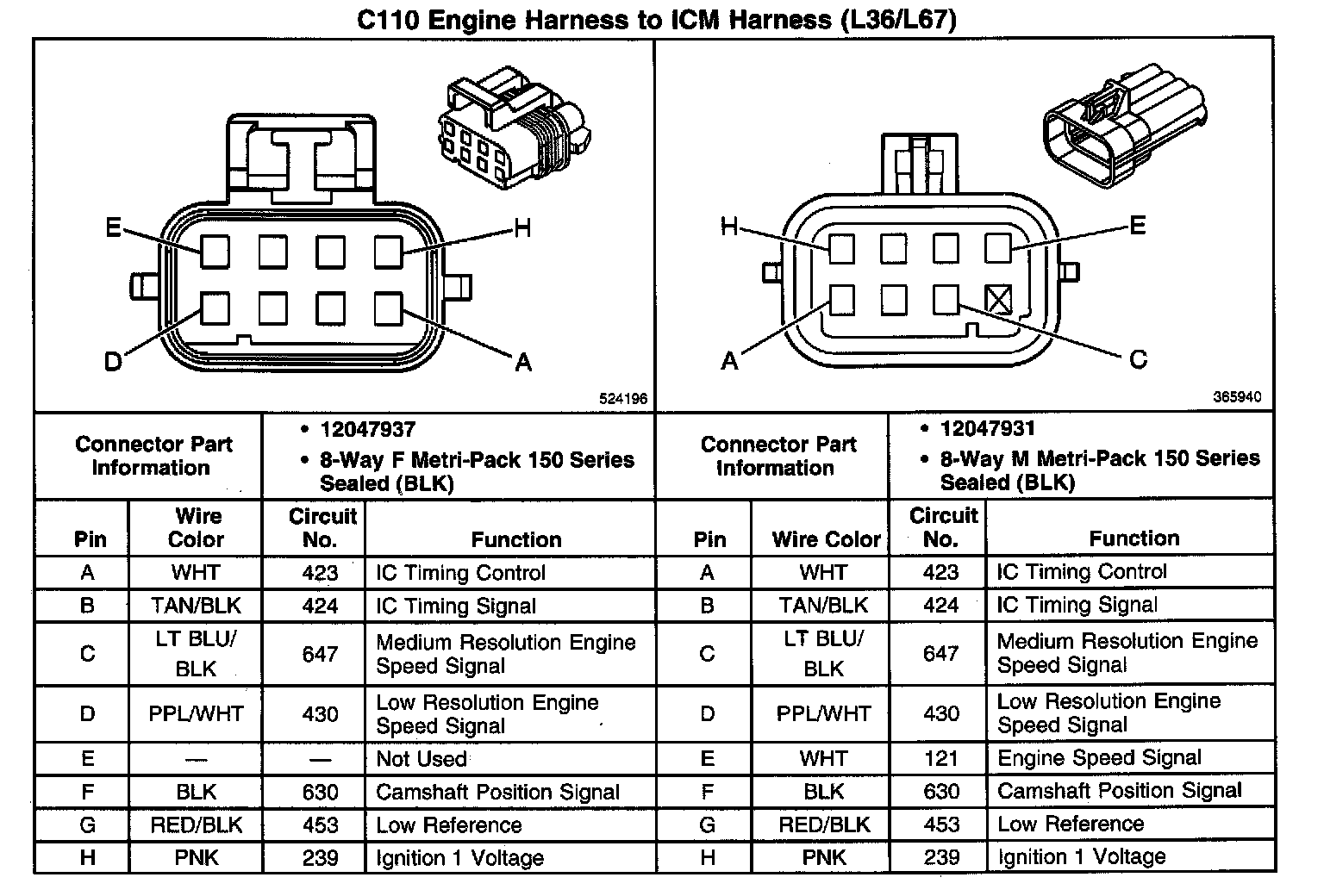

C110 Engine Harness To ICM Harness:
