Amplifier: Service and Repair

AMPLIFIER REPLACEMENT

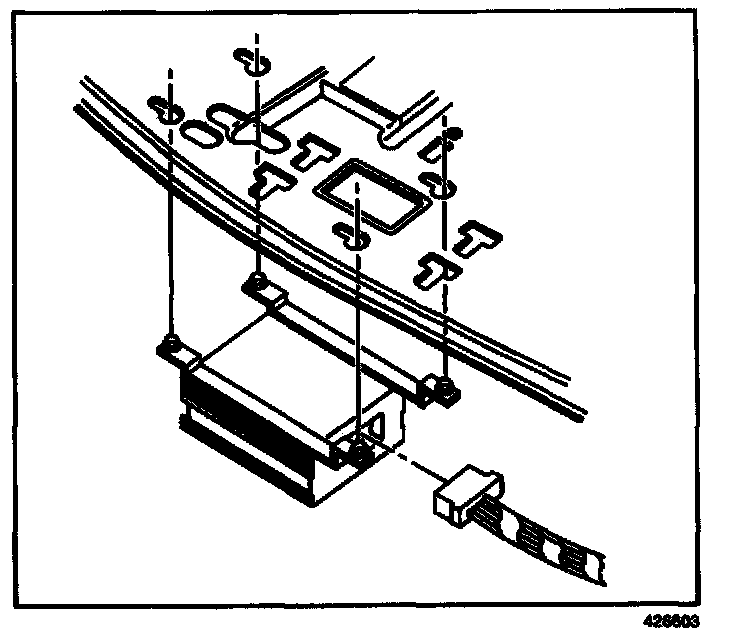

REMOVAL PROCEDURE




1. Remove the rear shelf trim panel.
2. Remove the rear seat sound barrier.
3. Disconnect the electrical connector from the low frequency audio amplifier
4. Loosen the nuts on the low frequency audio amplifier.
5. Move the low frequency audio amplifier to the right and down.
6. Remove the low frequency audio amplifier from the rear shelf.

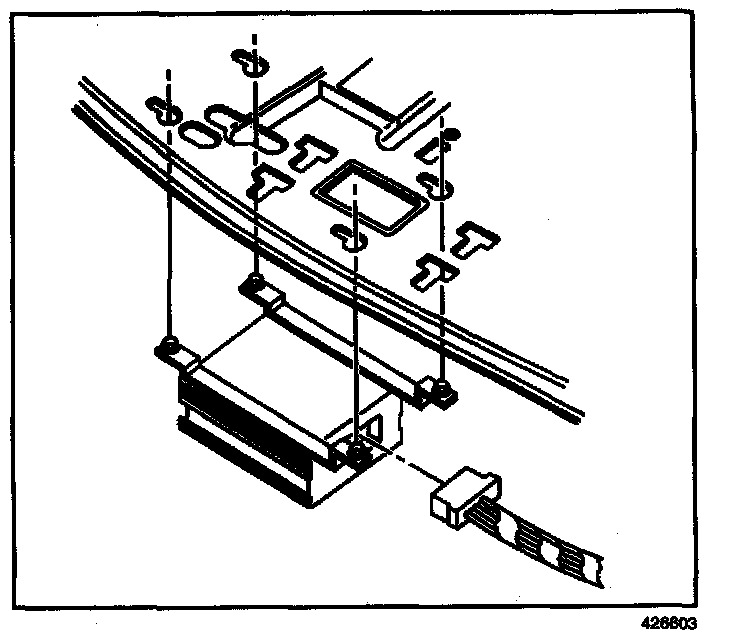

INSTALLATION PROCEDURE




1. Align the studs to the rear window panel slots and slide into place.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Tighten the low frequency audio amplifier nuts.

Tighten
Tighten the low frequency audio amplifier nuts to 6 N.m (53 lb in).

3. Connect the electrical connectors to the low frequency audio amplifier.
4. Install the rear seat sound barrier.
5. Install the rear shelf trim panel.
