Exhaust Gas Recirculation (EGR) Outlet Pipe Replacement
EXHAUST GAS RECIRCULATION (EGR) OUTLET PIPE REPLACEMENTREMOVAL PROCEDURE

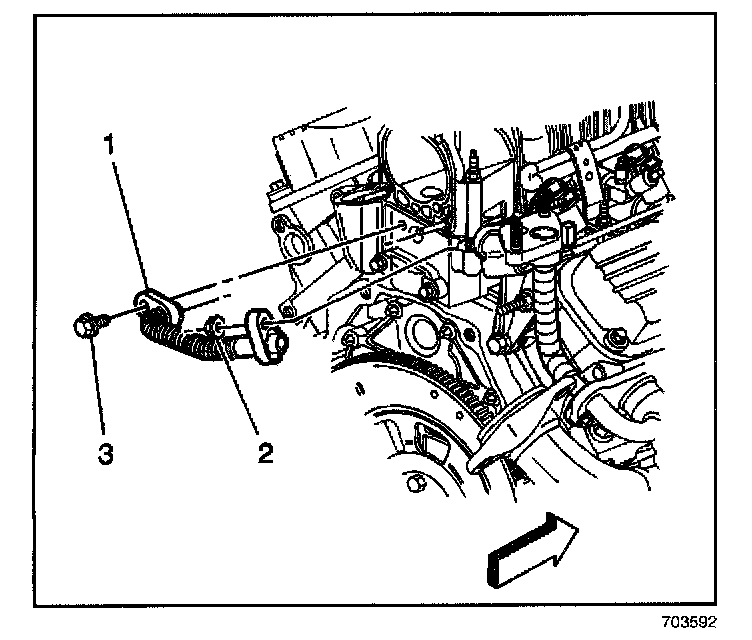

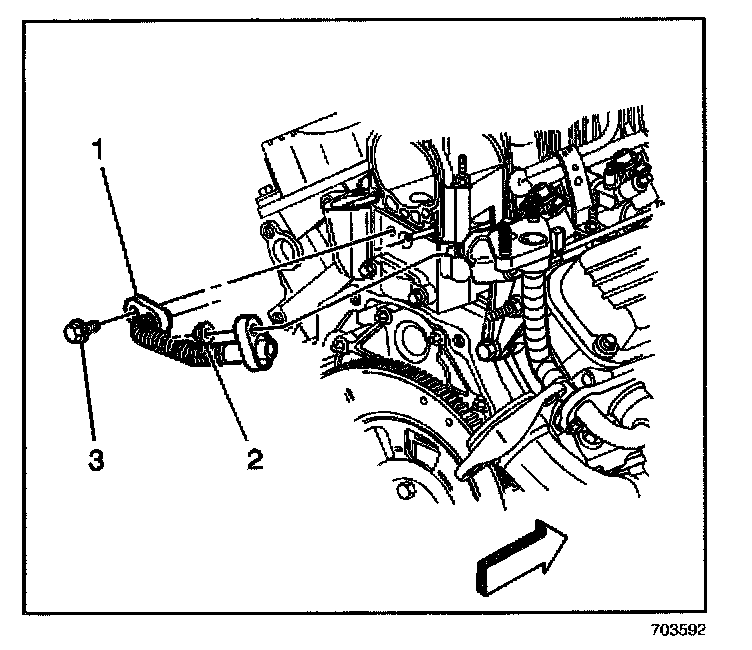

1. Remove the bolt (3) that attaches the EGR outlet pipe flange to the intake manifold.
2. Remove the nut (2) that attaches the EGR outlet pipe to the EGR valve inlet pipe assembly.
3. Remove the EGR valve outlet pipe (1).
INSTALLATION PROCEDURE
1. Install the EGR valve outlet pipe (1).
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the bolt (3) to the intake manifold.
Tighten
Tighten the bolt to 29 N.m (21 lb ft).
3. Install the nut (2) to the EGR valve inlet pipe assembly.
Tighten
Tighten the nut to 29 N.m (21 lb ft).
