Console Storage Bin Replacement

Console Storage Bin Replacement

Removal Procedure

1. Remove the center console door. Refer to Door Replacement - Console Compartment Center (Door Replacement - Console Compartment Center) .
2. Remove the rear console door. Refer to Door Replacement - Console Compartment Rear (Door Replacement - Console Compartment Rear) .
3. Remove the rear console trim panel. Refer to Trim Plate Replacement - Console Rear (Trim Plate Replacement - Console Rear) .

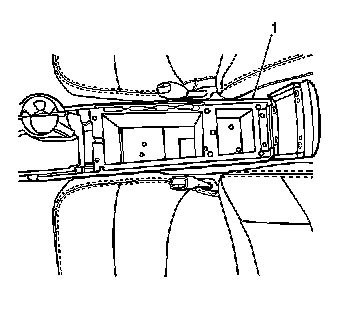

4. Remove the fasteners retaining the rear duct assembly (1).
5. Remove the rear duct (1).

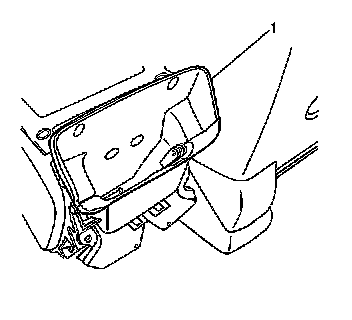

6. Remove the fasteners that fasten the storage (1) bin to the console.
7. Disconnect the electrical connector from the storage bin (1).
8. Remove the storage bin (1) from the console.



Installation Procedure





1. Install the storage bin (1) into the console.
2. Connect the electrical connector.
3. Install the fasteners to the storage bin (1).




4. Install the rear duct (1) to the console.
5. Install the fasteners that retain the rear duct (1).
6. Install the rear console trim panel. Refer to Trim Plate Replacement - Console Rear (Trim Plate Replacement - Console Rear) .
7. Install the rear console door. Refer to Door Replacement - Console Compartment Rear (Door Replacement - Console Compartment Rear) .
8. Install the console center door. Refer to Door Replacement - Console Compartment Center (Door Replacement - Console Compartment Center) .
