Windshield Washer Pump: Service and Repair
WASHER PUMP/RESERVOIR REPLACEMENTREMOVAL PROCEDURE

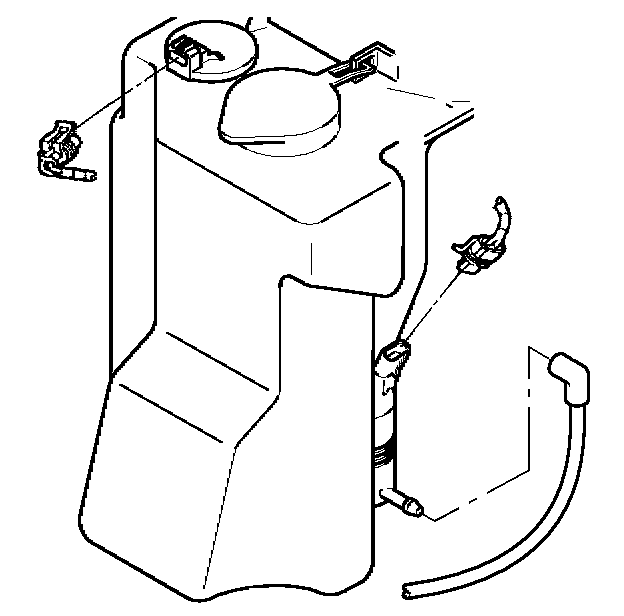

1. Disconnect the electrical connector from the washer pump.
2. Disconnect the electrical connector from the washer solvent container level sensor.
3. Disconnect the washer hose from the washer pump.
4. Drain the washer solvent into a suitable container.
5. Remove the brake master cylinder mounting nuts.
IMPORTANT: Do not disconnect the hydraulic brake pipes from the master cylinder.
6. Carefully position the brake master cylinder toward the passenger compartment.
7. Remove the 2 nuts from the washer solvent container.
8. The washer solvent container has a tab which is located to a slot in the vehicle body rail.
9. Lift upward, in order to remove the washer solvent container from the vehicle.

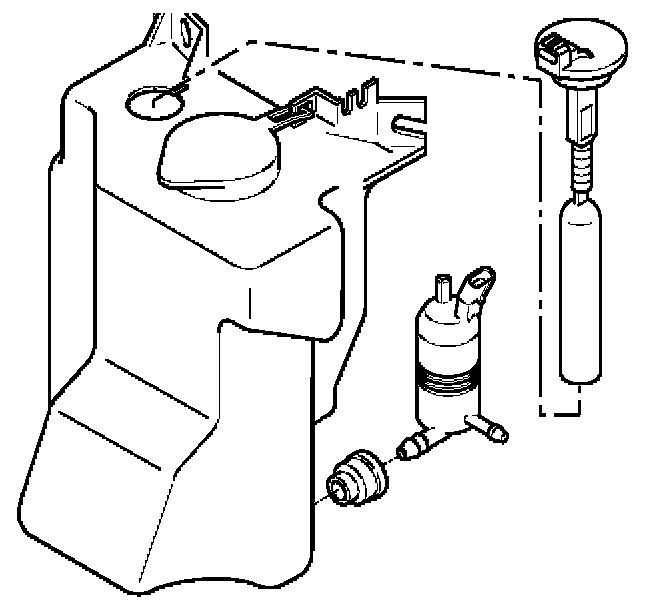

10. Remove the washer pump and the grommet from the washer solvent container.
11. Remove the washer solvent level sensor from the washer solvent container.
INSTALLATION PROCEDURE

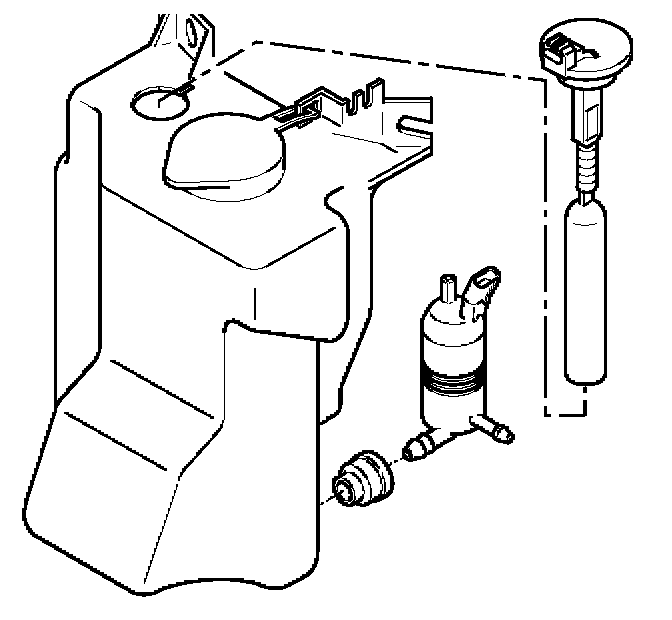

1. Install the washer solvent level sensor into the washer solvent container.
IMPORTANT: The tab on the washer solvent level sensor must be aligned with the slot in the hole on the container.
2. Install the grommet and the washer pump into the washer solvent container.
3. Align the lower tab on the container with the slot in the body rail.
4. Position the container in order to install the 2 nuts.
5. Install the washer solvent container with 2 nuts.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the nuts to 8 N.m (70 lb in).
6. Carefully position the brake master cylinder to the mounting studs.
7. Install the brake master cylinder mounting nuts.
8. Connect the electrical connectors to the washer solvent container level sensor and the washer pump.
9. Connect the washer hose to the washer pump.
10. Fill the washer solvent container with washer solvent.
11. Secure the washer solvent container cap.
12. Verify the wiper washer system operation.
