Oil Pump

Oil Pump Replacement


Removal Procedure
1. Remove the case side cover.

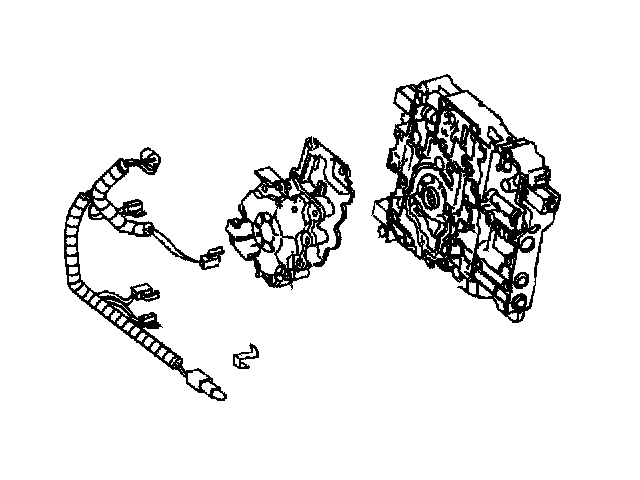

2. Remove the wiring harness as necessary.

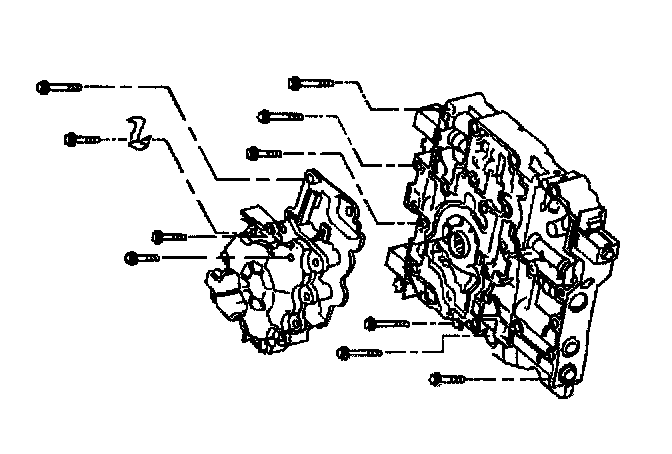

3. Remove the oil pump to valve body bolts.



Installation Procedure

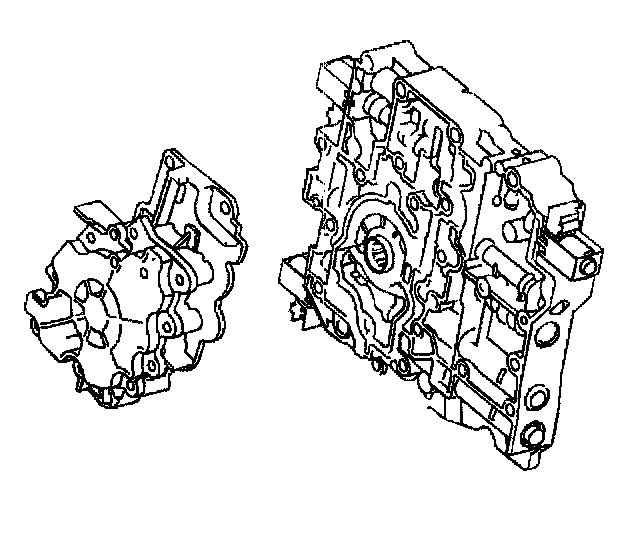

1. Install the oil pump to the valve body.

Notice: Use a torque wrench to tighten the pump to valve body bolts. Do not exceed the torque specifications.

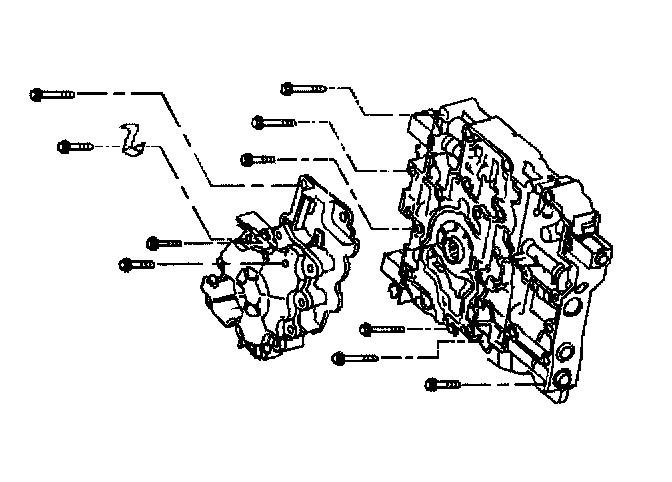

2. Install the oil pump to valve body bolts.
Tighten the valve body bolts to 8 Nm (70 inch lbs.).

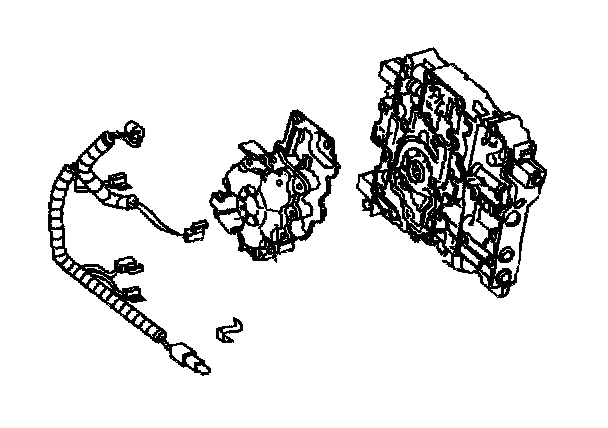

3. Install the wiring harness, if removed.
4. Install the case side cover.
5. Fill the transaxle to the proper level.
6. Inspect the transaxle fluid level.
7. Inspect for fluid leaks.
