Transmission Pressure Test Port: Service and Repair

Oil Pressure Test Plug Replacement


Removal Procedure
1. Remove the throttle body air inlet duct.

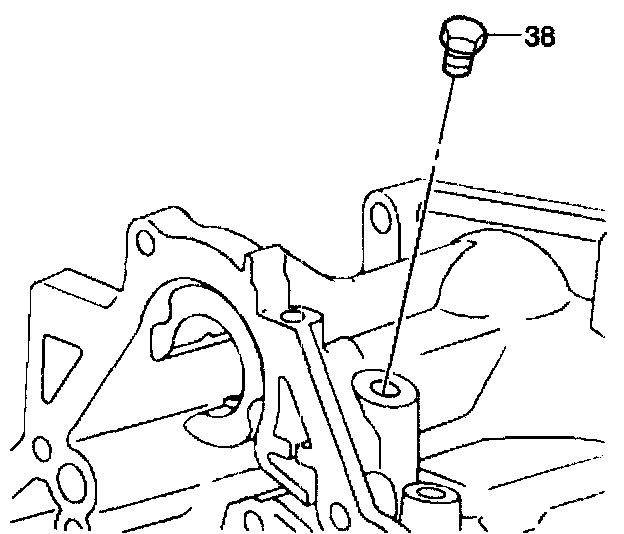

2. Remove the oil pressure test plug (38).



Installation Procedure

Notice: Refer to Fastener Notice in Cautions and Notices.

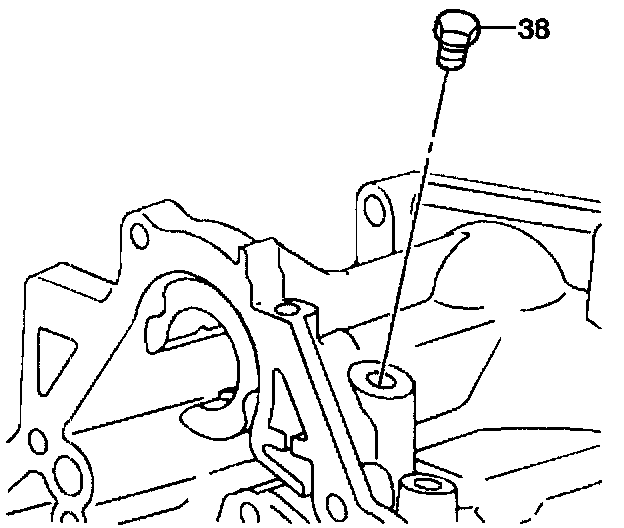

1. Install the line pressure pipe plug (38).
Tighten the line pressure pipe plug (38) to 12 Nm (106 inch lbs.).

2. Install the throttle body air inlet duct.
