Power Steering Pump Flow Control Valve Replacement

Power Steering Pump Flow Control Valve Replacement - On Vehicle

Removal Procedure





1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Install a drain pan under the vehicle.

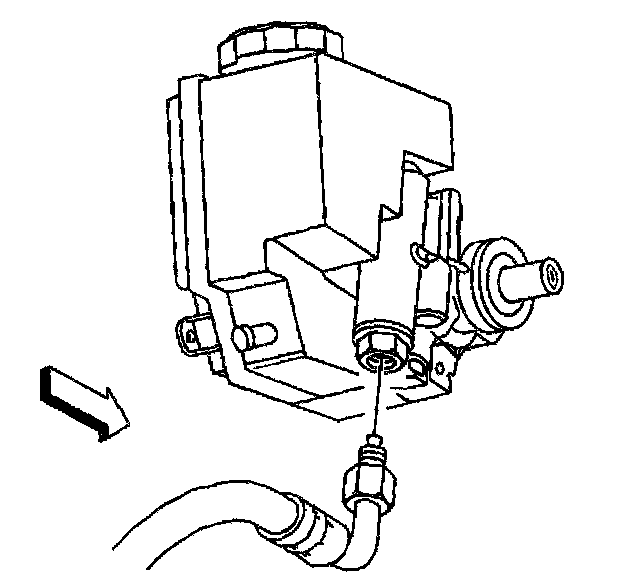

3. Remove the power steering pressure hose from the flow control valve.

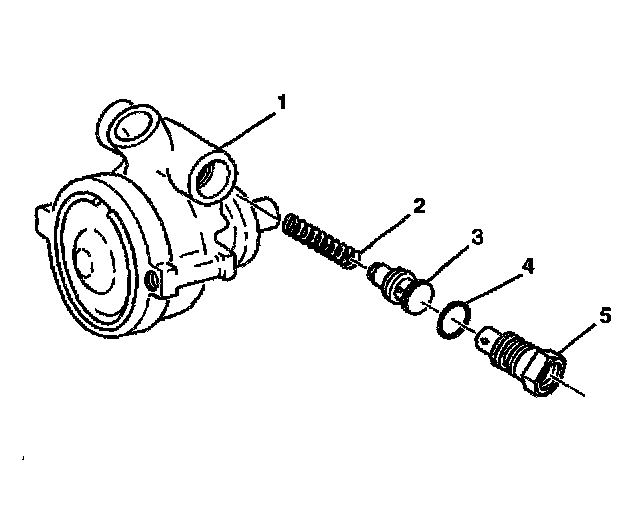

4. Remove the power steering flow control valve assembly (3) from the power steering pump.
5. Remove the power steering flow control spring (2).

Installation Procedure

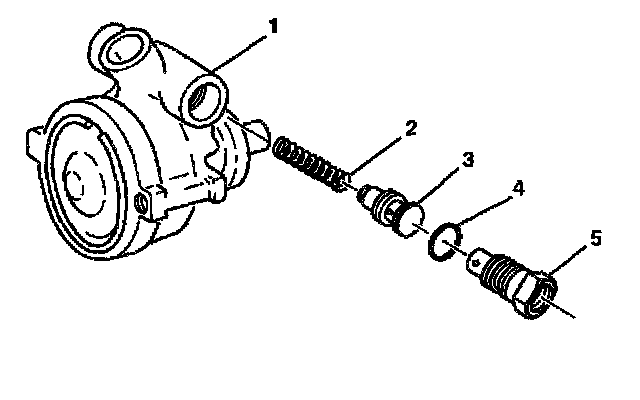

1. Install the power steering flow control spring (2) to the power steering pump.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the power steering flow control valve assembly (3) to the power steering pump.
Tighten the power steering flow control valve assembly (5) to 75 Nm (55 ft. lbs.).

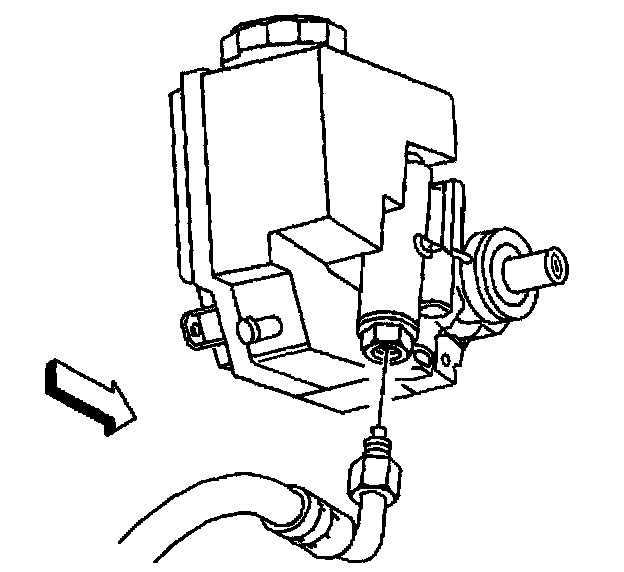

3. Install the power steering pressure hose to the power steering pump.
Tighten the power steering pressure hose to 27 Nm (20 ft. lbs.).
4. Lower the vehicle.
5. Bleed the power steering system.
