Child Seat Tether Attachment: Service and Repair

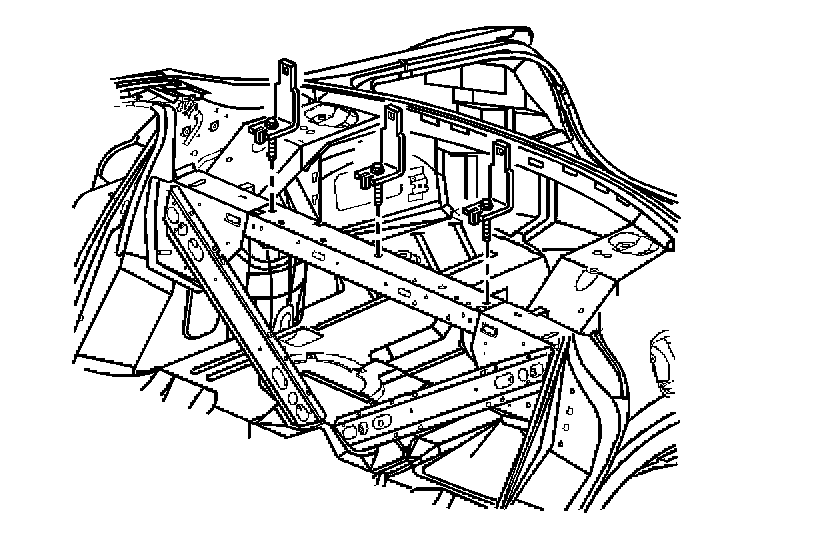

CHILD RESTRAINT TETHER ANCHOR REPLACEMENTREMOVAL PROCEDURE
1. Remove the rear shelf trim panel.
2. Remove the fasteners from the child tether anchors.
3. Remove the child tether anchors from the vehicle.

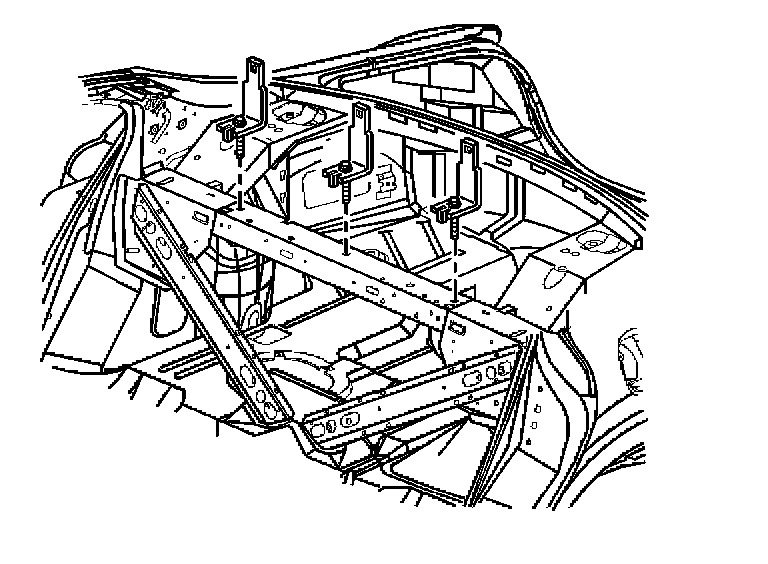

INSTALLATION PROCEDURE
1. Install the child tether anchors to the vehicle.
2. Install the child tether anchor fasteners.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the fastener to 30 N.m (22 lb ft).
3. Install the rear shelf trim panel.
