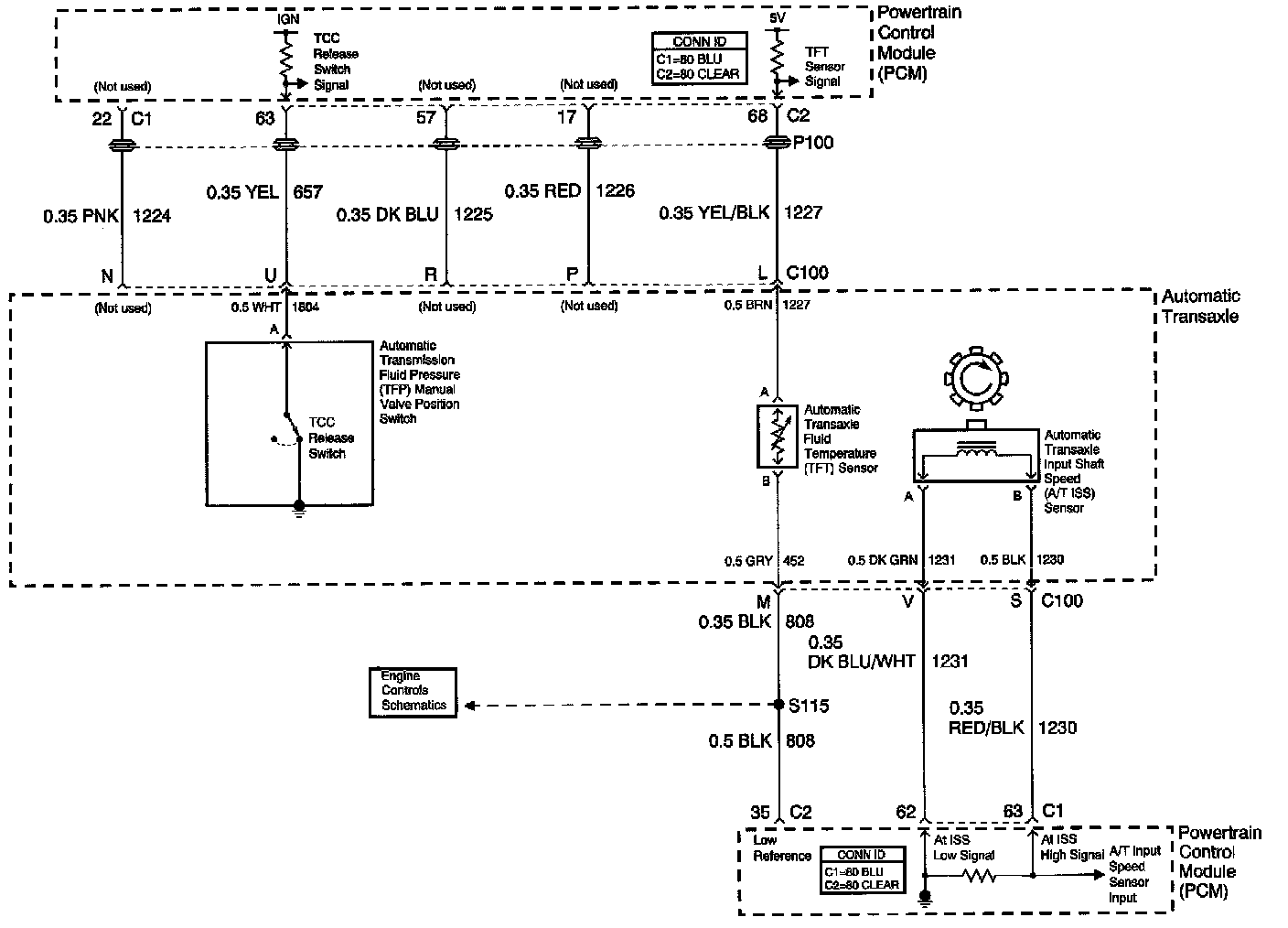

Automatic Transmission Diagram 2




Automatic Transmission Diagram 2:






next diagram.......Automatic Transmission Diagram 3
