Door Lamp: Service and Repair

DOOR LAMP REPLACEMENT

REMOVAL PROCEDURE

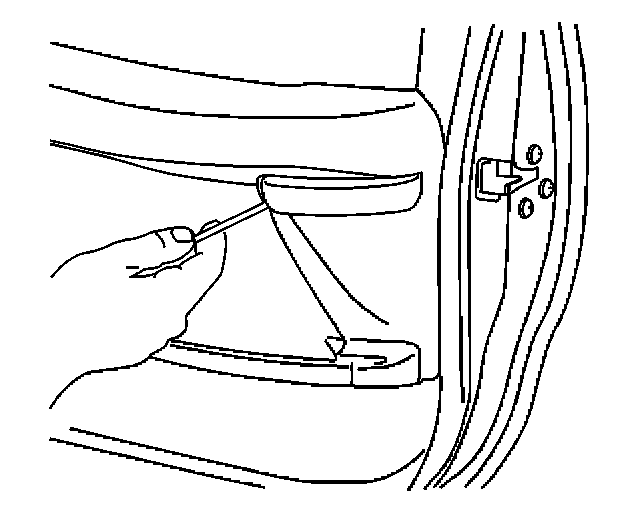

1. Gently pry out the door lamp housing with a flat blade tool.

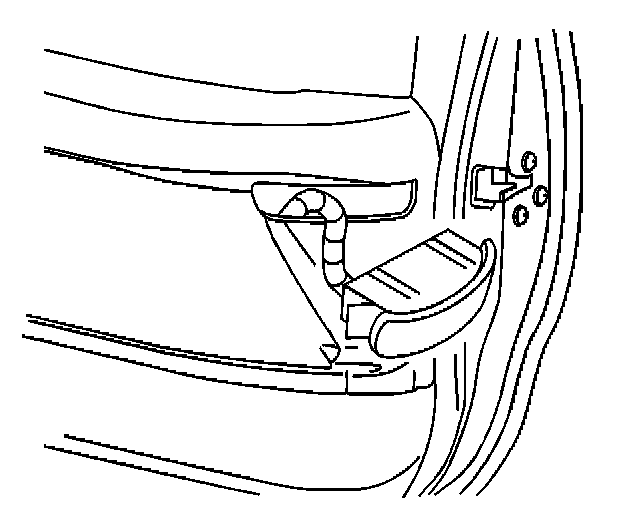

2. Disconnect the electrical connector from the door lamp housing.
3. Remove the door lamp housing.

INSTALLATION PROCEDURE

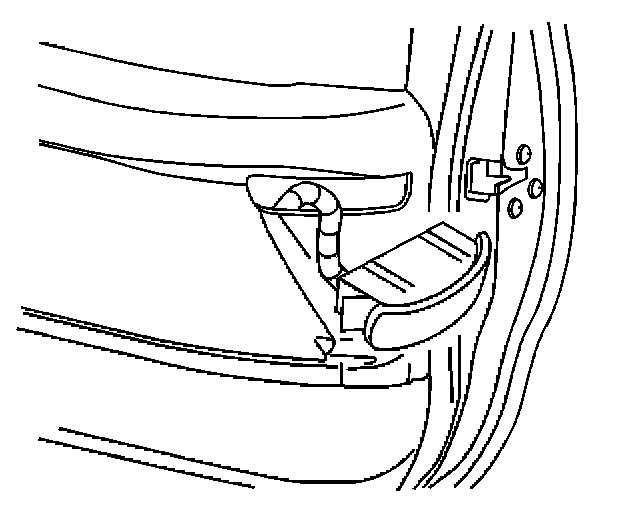

1. Connect the electrical connector to the door lamp housing.
2. Install the door lamp housing to the door trim panel.
3. Gently push in order to secure the locking tabs.
