HEAD UP DISPLAY SWITCH REPLACEMENT

REMOVAL PROCEDURE

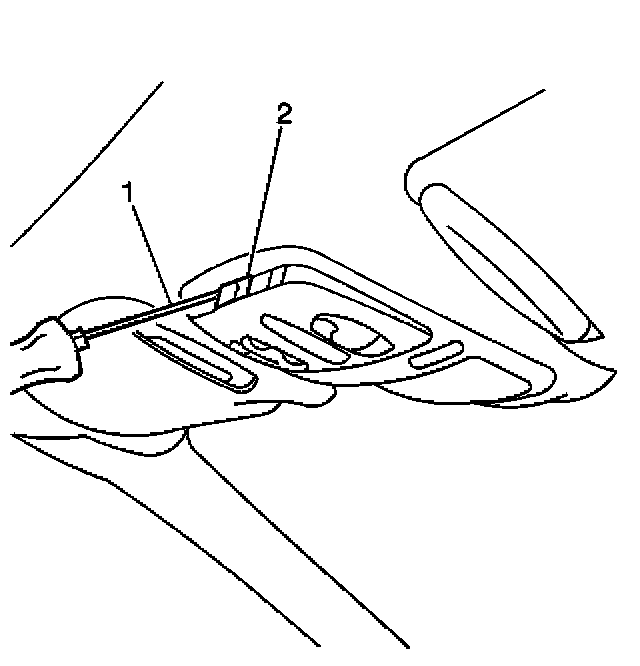

1. Insert a flat-bladed tool (1) at the rear edge of the access door in order to disengage the lock tab (2).

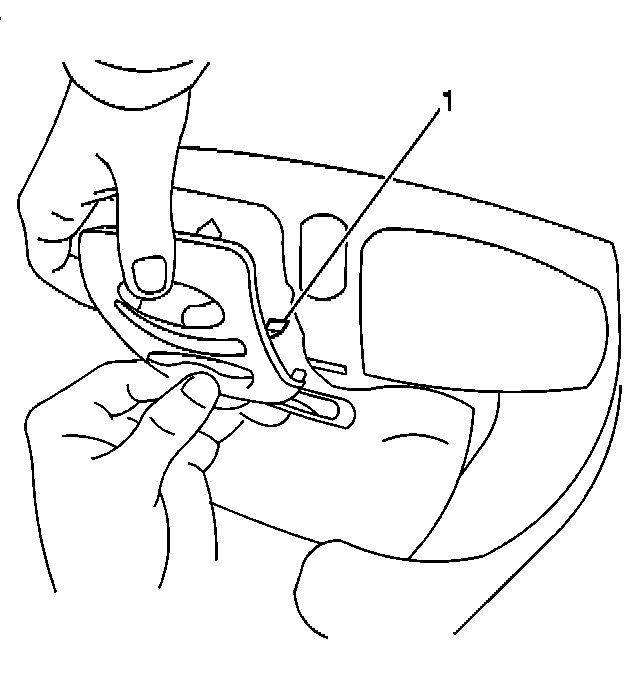

2. Disengage the forward tabs (1) from the overhead console.




3. Disconnect the electrical connectors.

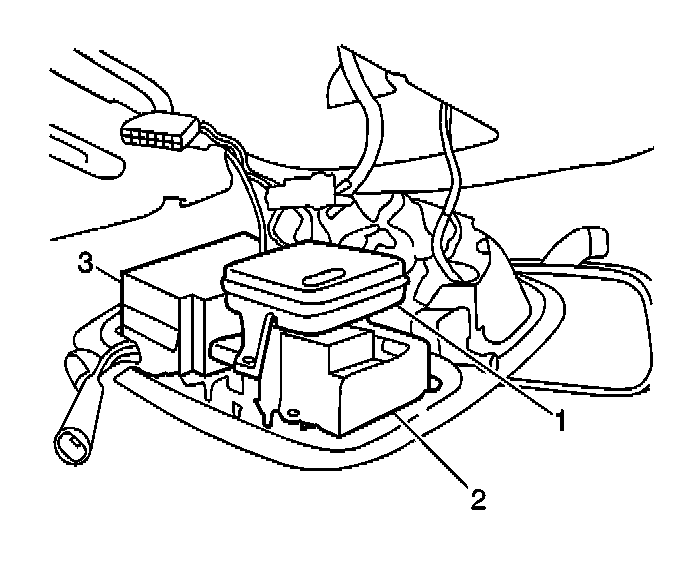

4. Remove the fasteners from the HUD control switch (1) or the image adjuster switch at the overhead console.

INSTALLATION PROCEDURE

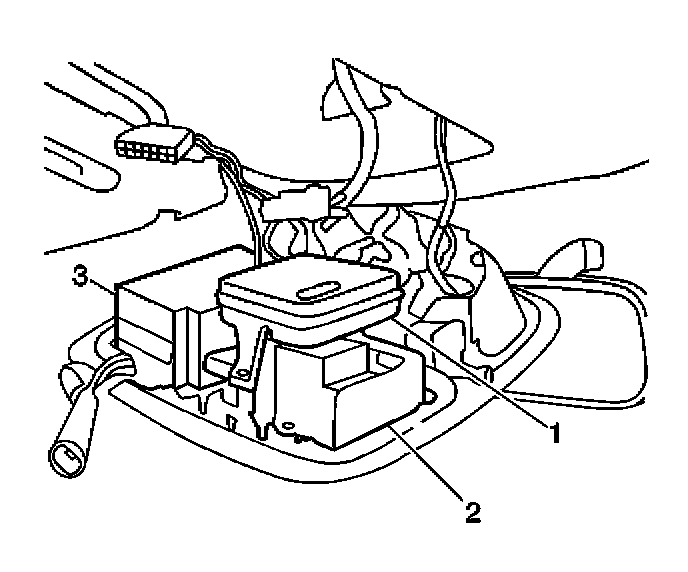

1. Install the fasteners to the HUD control switch (2) or the image adjuster switch at the overhead console.
2. Connect the electrical connectors.

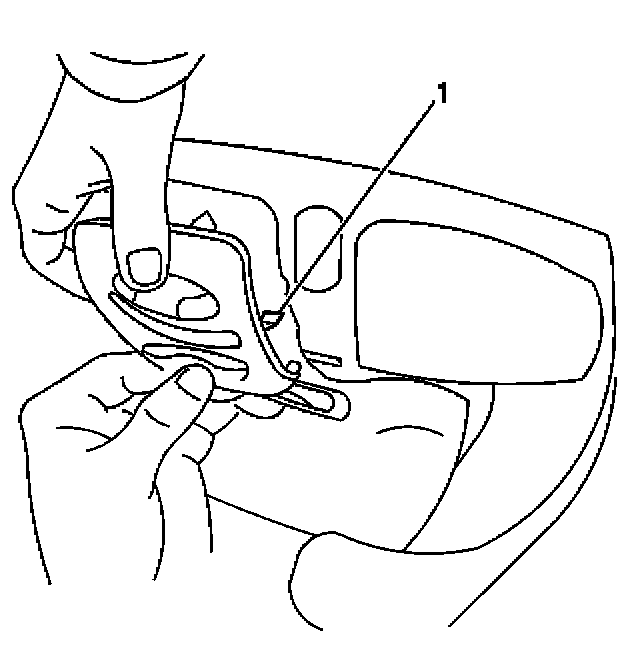

3. Position the access door. Align the rear tabs (1) into the overhead console.
4. Push upward on the engaging front tab.
