Head Up Display Module Replacement

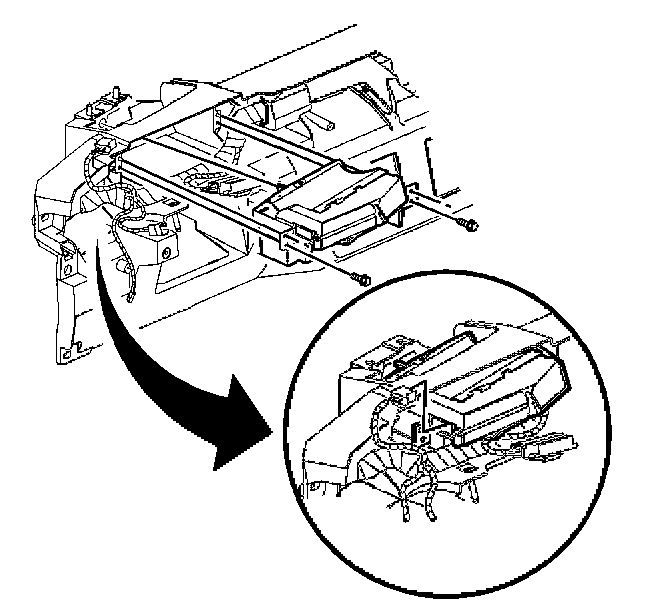

HEAD UP DISPLAY MODULE REPLACEMENTREMOVAL PROCEDURE
1. Remove the instrument panel (IP) cluster.
2. Remove the fasteners from the head-up display (HUD) module.
3. Remove the HUD module out through the IP cluster opening.
4. Disconnect the electrical connector from the module.

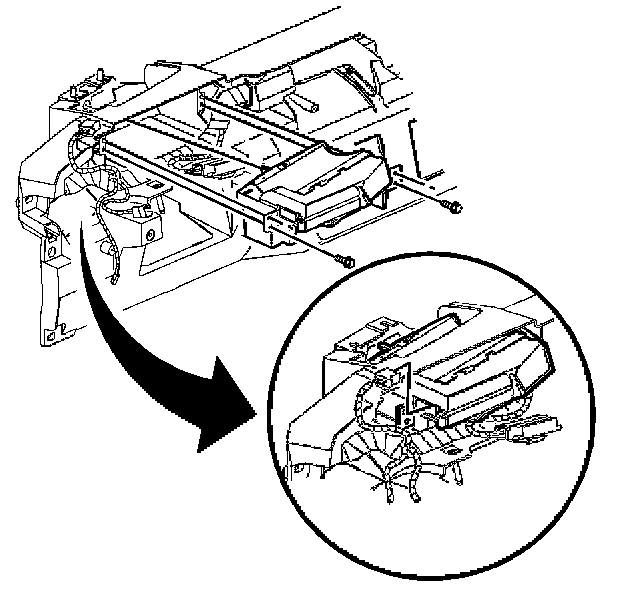

INSTALLATION PROCEDURE
1. Connect the electrical connector to the HUD module.
2. Insert the head-up display (HUD) module into the instrument panel (IP) cluster opening.
3. Install the fasteners to the HUD module.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the fasteners to 3 N.m (26 lb in).
4. Install the IP cluster.
