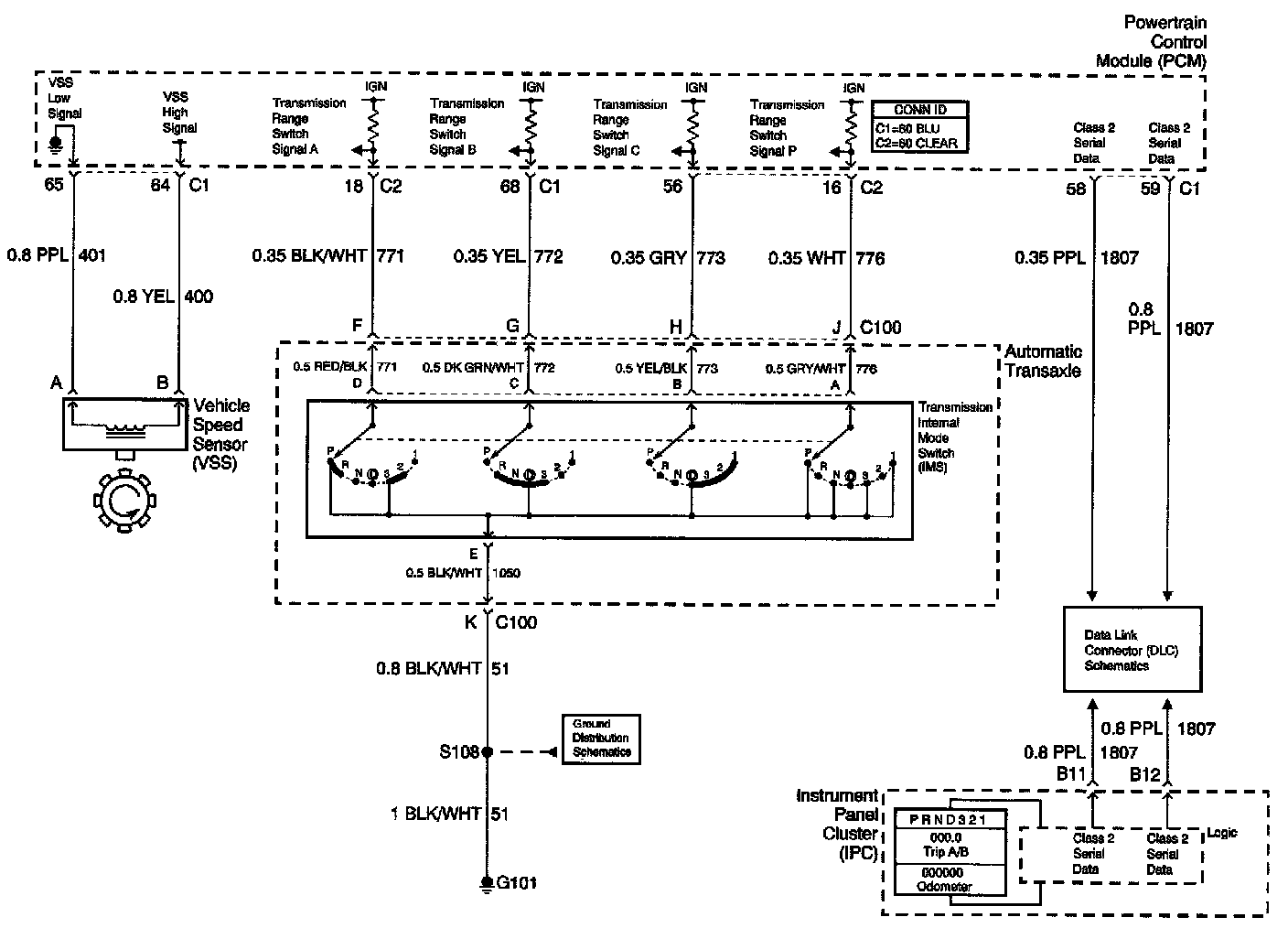

Automatic Transmission Diagram 4
Automatic Transmission Diagram 4
Automatic Transmission Diagram 4:
previous diagram...........
Automatic Transmission Diagram 3
