Home >> Buick >> 2004 >> Park Avenue V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Collision Avoidance and Parking Assist Systems >> Parking Assist Distance Sensor >> Object Sensor - LR Middle

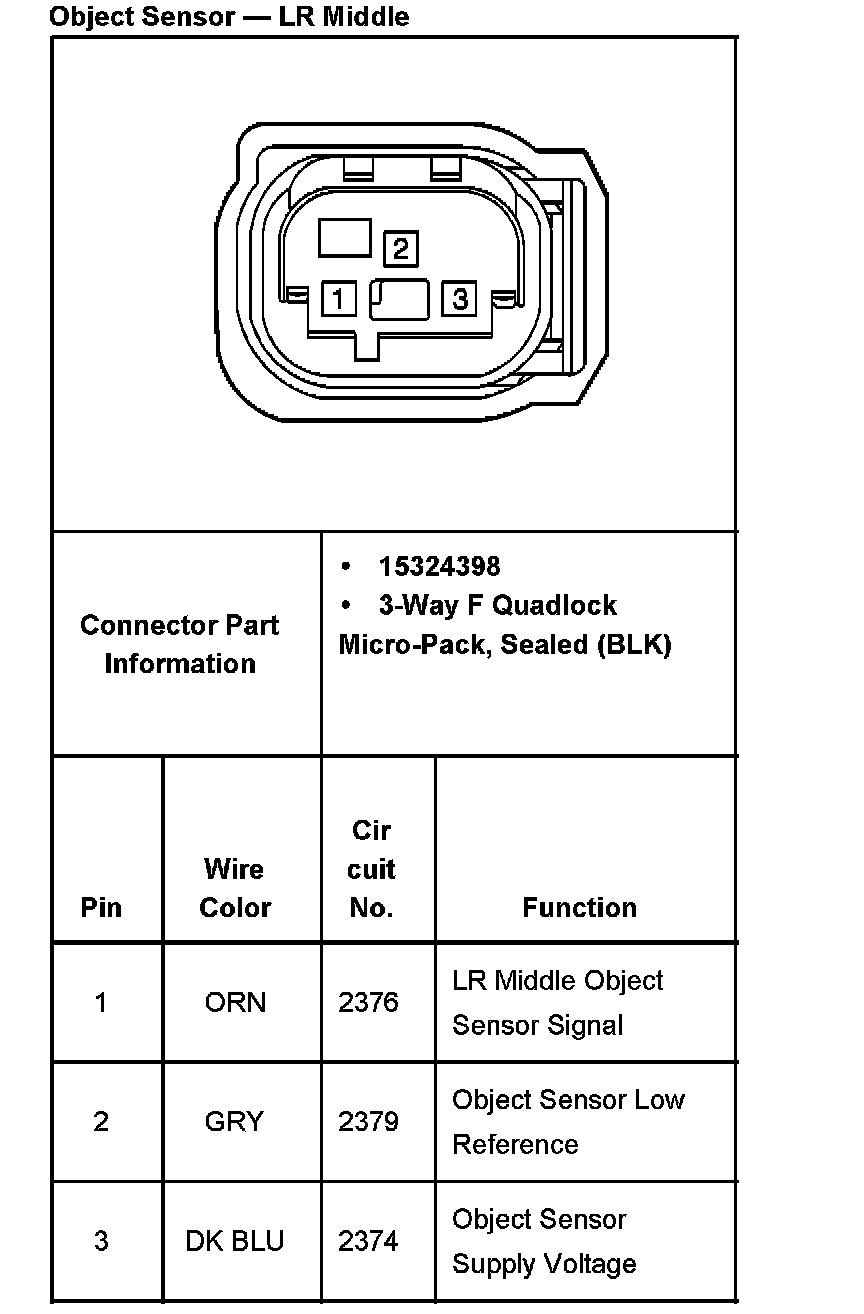

Object Sensor - LR Middle

Object Sensor - LR Middle:
