Sealing Strip Replacement - Lower Rear Auxiliary

Sealing Strip Replacement - Lower Rear Auxiliary

Tools Required

J 38778 Door Trim Pad and Garnish Clip Remover


Removal Procedure

1. Open the rear door.
2. Use the J 38778 in order to remove the push-in retainers from the top to the bottom.

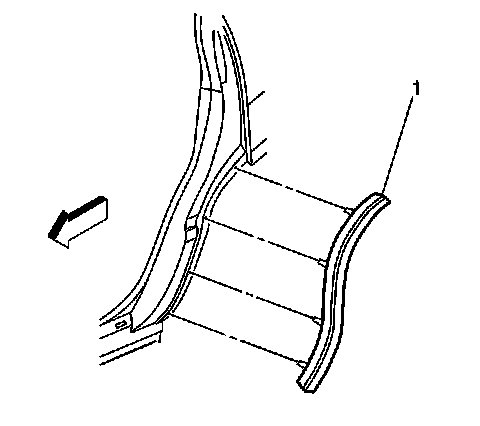

3. Remove the seal (1).



Installation Procedure





1. Align the seal (1) to the rear door opening.
2. Insert the push-in retainers in order to retain the seal in place.
3. Close the rear door.
