Rear Door Weatherstrip Replacement

Weatherstrip Replacement - Rear Door

Removal Procedure

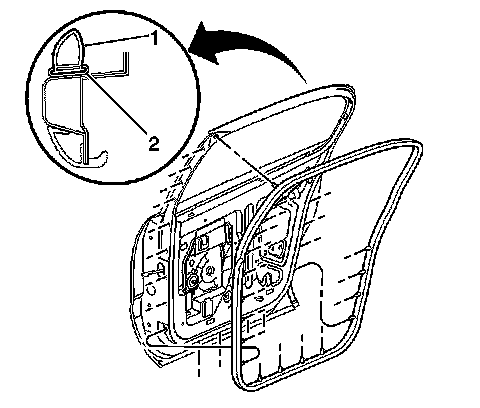

1. Remove the push-in retainer (2) from the upper front corner of the door.
2. Remove the weatherstrip (1) from the retainer along the header and B-pillar.
3. Remove the door mounted weatherstrip (1) at the bottom of the door by removing the push-in fasteners.



Installation Procedure





1. Install the push-in retainer (2) through the weatherstrip in the upper front corner of the door.
2. Install the weatherstrip (1) into the channel along the header and B-pillar.
3. Secure the weatherstrip (1) to the bottom of the door using the push-in retainers.
